Same model may have multiple batches, images only for reference.

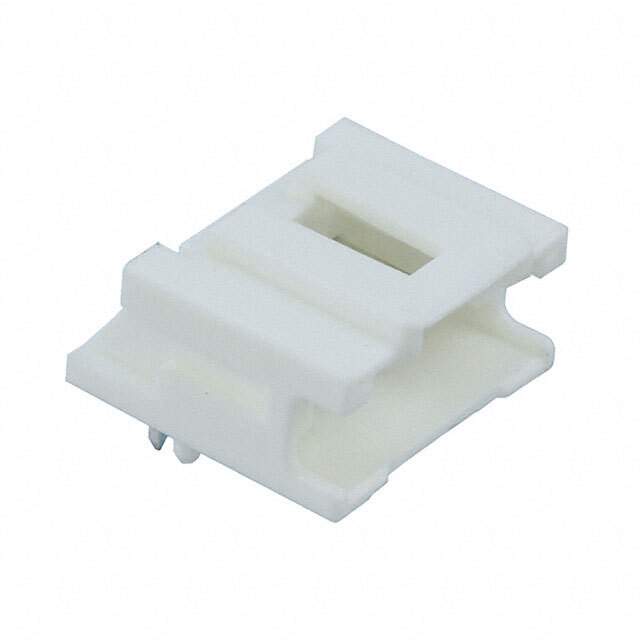

0559350410 Real Image
Same model may have multiple batches, images only for reference.

0559350410

Part No 0559350410
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2MM / Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series MicroClasp 55935
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.144" (3.66mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.264" (6.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Natural
Applications General Purpose, Industrial, Medical
Base Product Number 055935
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1343018-0559350410
Ultra Librarian 3D Model Ultra Librarian 0559350410 CAD Model

Description

The Molex 1343018-0559350410 is a male pin header that is designed for use in electronic applications.

  • Number of Positions: 4
  • Fastening Type: Latch Holder
  • Termination: Kinked Pin, Solder
  • Contact Finish: Tin
  • Insulation Color: Natural
  • Package: Tray
  • Standard Package: 900
  • ROHS3 Compliant: Yes
