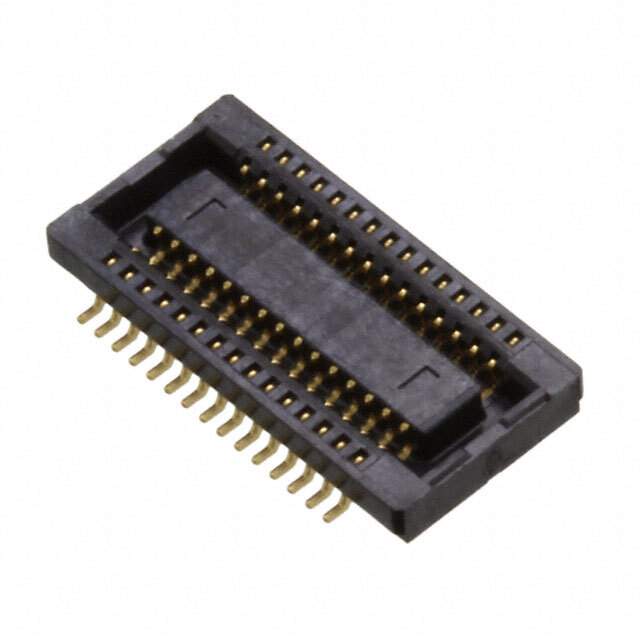

Part No 547220307
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
547220307 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Manufacturer Molex, LLC
Series SlimStack? 54722
Packaging Reel(TR)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD/SMT
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Mated Stacking Heights 1.5mm
Height Above Board 0.045" (1.14mm)
Win Source Part Number 122766-0547220307
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 547220307 CAD Model
