Same model may have multiple batches, images only for reference.

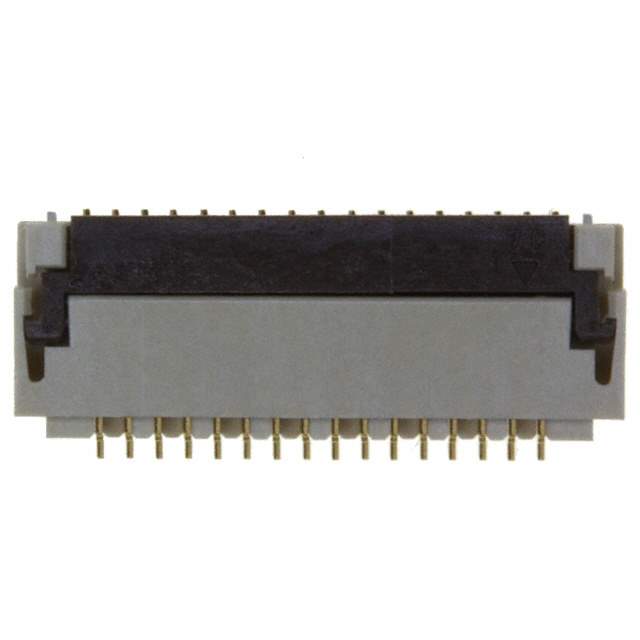

543933381 Real Image
Same model may have multiple batches, images only for reference.

543933381

Part No 543933381
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 33POS 0.30MM R/A
Datasheet
543933381 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Easy-On 54393
Packaging Reel package
Part Status Obsolete(EOL)
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 33
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.077" (1.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness 8μin (0.20μm)
Mating Cycles 20
Win Source Part Number 764002-543933381
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 543933381 CAD Model

Description

{"ProductId":702380,"FormattedDescription":"

The Molex Easy-On 54393 series is a 33-position, surface mount, right angle FFC/FPC connector.

  • Pitch: 0.012\" (0.30mm)
  • Height Above Board: 0.077\" (1.95mm)
  • Features: Zero Insertion Force (ZIF), Solder Retention
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 8μin (0.20μm)
  • Voltage Rating: 50V
  • Current Rating: 0.2A
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Locking Feature: Flip Lock
  • FPC Type: Flat Flex
  • Mating Cycle: 20
  • Status: Obsolete (EOL)
"}
