Same model may have multiple batches, images only for reference.

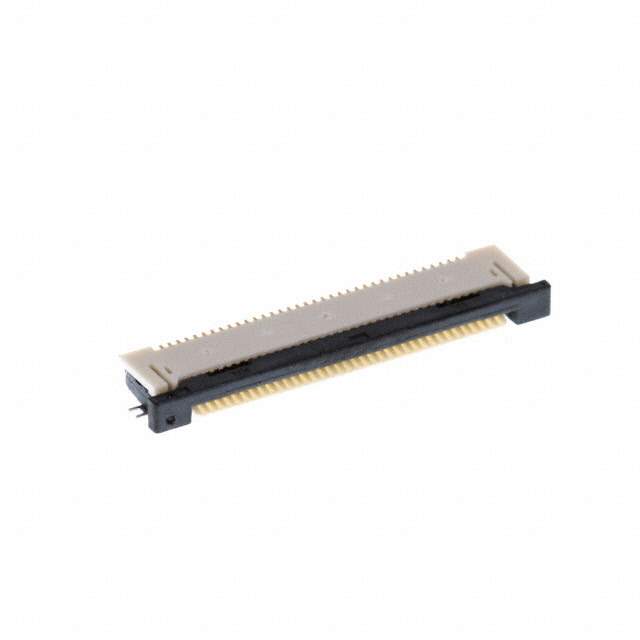

54132-3662 Real Image
Same model may have multiple batches, images only for reference.

54132-3662

Part No 54132-3662
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Serial At A And Serial Attached Scsi -29 Positions - Receptacle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Gold
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Thermoplastic
Material Bronze
Maximum Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 36
Number of Contacts 36
Number of Positions 36
Number of Rows 1
Orientation Right Angle
Pitch 500 µm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1030230-54132-3662
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54132-3662 CAD Model

Description

The Molex, LLC connector with part number 1030230-54132-3662 is a 36-position, 1-row, surface mount receptacle with a pitch of 500μm.

  • Positions: 36
  • Rows: 1
  • Mounting: Surface Mount
  • Type: Receptacle
  • Pitch: 500μm
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
