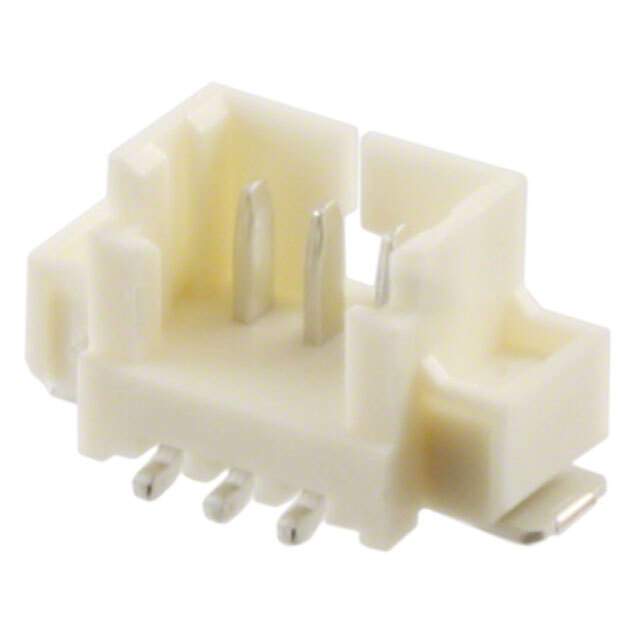

Same model may have multiple batches, images only for reference.

53398-0390

Name: 53398-0390
Brand: Molex, LLC
SKU: 729089
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	53398-0390
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 3POS 1.25MM VERT SMD
Datasheet	53398-0390 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Series	PicoBlade 53398
Packaging	Reel package
Part Status	Obsolete(EOL)
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.049" (1.25mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.185" (4.70mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin-Lead
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical
Win Source Part Number	763976-53398-0390
Family Name	53398
Introduction Date	May 14, 2001
ECCN	EAR99
Country of Origin	Hong Kong, Ireland, Japan, Malaysia, Republic of Korea, Singapore
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 53398-0390 CAD Model

Description

The Molex PicoBlade 53398 Connector is a header type connector with 3 positions.

Product Name: Molex PicoBlade 53398 Connector
Manufacturer: Molex
Type: Header
Positions: 3
Pitch: 0.049 inches (1.25 mm)
Termination: Solder
Shrouded: 3 walls
Fastening Type: Detent lock
RoHS Compliant: Yes
Applications: Automotive, general purpose, industrial, and medical
