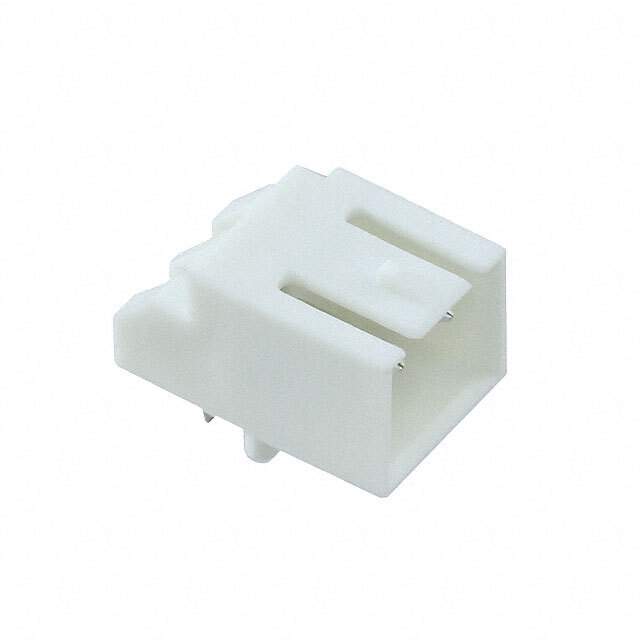

Same model may have multiple batches, images only for reference.

0532590229

Name: 0532590229
Brand: Molex, LLC
SKU: 1333052
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0532590229
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS 3.5MM / Connector Header Through Hole, Right Angle 2 position 0.138" (3.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.311" (7.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBTP)
Features	Board Guide
Material Flammability Rating	UL94 V-0
Base Product Number	053259
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	0532590229-ND,532590229,053259-0229,53259-0229,WM14648
Standard Package	800
Win Source Part Number	1333052-0532590229
Ultra Librarian 3D Model	Ultra Librarian 0532590229 CAD Model

Description

The Molex 1333052-0532590229 is a header male pin connector with a board guide feature.

Positions Loaded: 2-Position, All
Connector Type: Header
Rows: 1
Termination: Solder
Contact Material: Brass
Contact Plating: Tin
Pitch: 0.138 inches
Contact Finish Thickness: 39.4µin
RoHS Compliant: Yes
Flammability Rating: UL94 V-0
Suitable For: Rectangular Connectors
Temperature Range Operating: -40°C to 105°C
