Same model may have multiple batches, images only for reference.

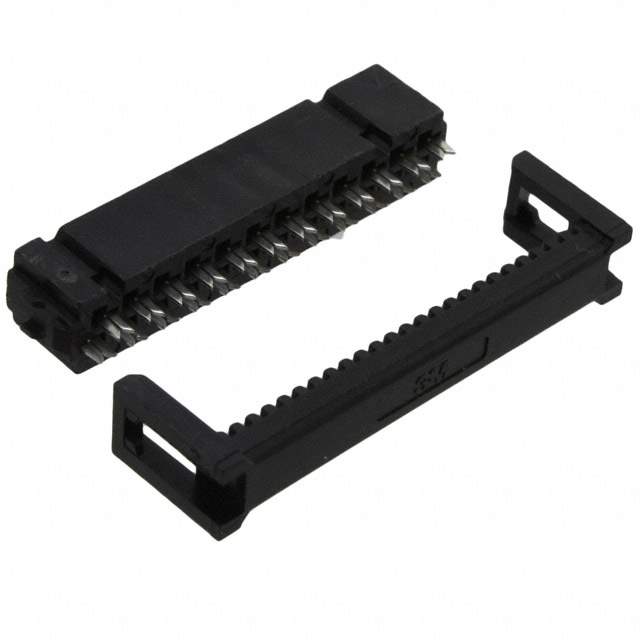

D89124-0031HK Real Image
Same model may have multiple batches, images only for reference.

D89124-0031HK

Part No D89124-0031HK
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 24P IDC 26-28AWG GOLD / 24 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series D89
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 24
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Feed Through
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Gray
Base Product Number D89124
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1340222-D89124-0031HK
Ultra Librarian 3D Model Ultra Librarian D89124-0031HK CAD Model

Description

The 3M D89 Series is a free-hanging, panel mount type connector with 24 positions, 2 rows, and a pitch of 0.100 inches (2.54mm).

  • Connector Type: a receptacle with a feed-through feature
  • Termination: IDC termination
  • Contact Finish: gold with a thickness of 15.0µin (0.38µm)
  • Wire Gauge: can accommodate wire gauge of 26-28 AWG with ribbon cable wire type
  • Mounting Type: free hanging (in-line)
  • Current Rating: 2A
  • Application: suitable for panel-to-panel connections
