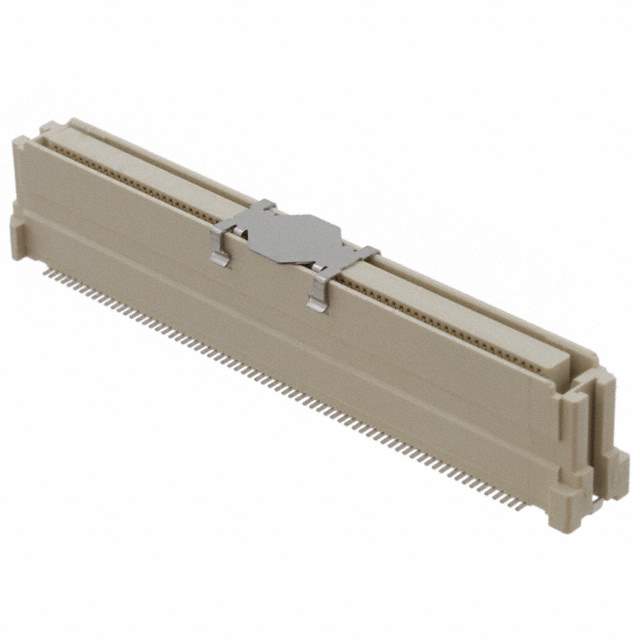

52901-1474 Real Image
Same model may have multiple batches, images only for reference.

52901-1474

Part No 52901-1474
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Board to Board RCP 140 POS 0.635mm Solder ST SMD SlimStack™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Material Bronze
Contact Plating Gold
Contact Resistance 70 mΩ
Country of Origin JP
Current Rating 500 mA
Depth 6.2 mm
Gender Female
Housing Color White
Housing Material Polymer
Lead Pitch 640 µm
Length 52.32 mm
Mated Stacking Heights 16 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 100 V
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 120
Number of Contacts 140
Number of Positions 140
Number of Rows 2
Orientation Vertical
Packaging Tape & Reel
Pitch 635 µm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating (DC) 100 V
Win Source Part Number 1220179-52901-1474
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 52901-1474 CAD Model

Description

The 1220179-52901-1474 is a receptacle connector manufactured by Molex, LLC.

  • Positions: 140
  • Pitch: 635 µm
  • Current Rating: 500 mA
  • Rows: 2
  • Termination: Solder
  • Length: 52.32 mm
  • Depth: 6.2 mm
  • Mounting Type: Surface mount
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Polymer
  • Housing Color: White
  • RoHS Compliant: Yes
  • Maximum Voltage Rating: 100 VDC
  • Application: Circular connector housings
