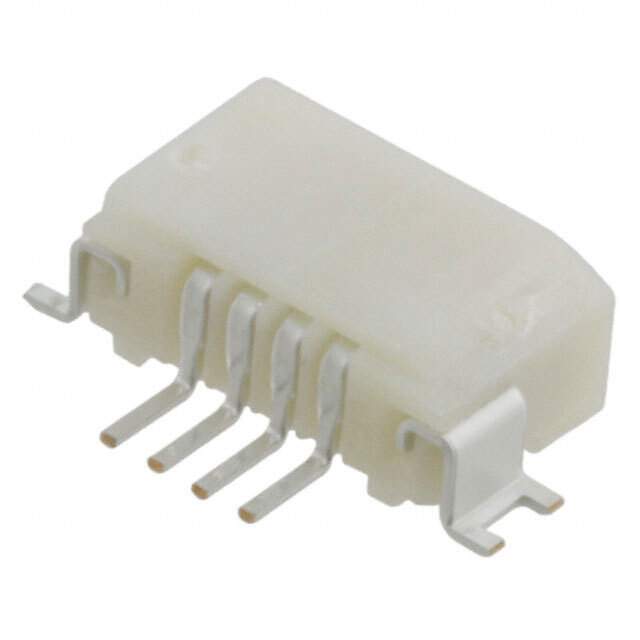

52793-0470 Real Image
Same model may have multiple batches, images only for reference.

52793-0470

Part No 52793-0470
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right-Angle, Non-ZIF, Top Contact Style, 4 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Top
Contact Material Bronze
Contact Plating Tin
Contact Resistance 30 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 4.8 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Polyphenylene
Length 10.3 mm
Material Bronze
Max Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Pitch 1 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1166164-52793-0470
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 52793-0470 CAD Model

Description

The Molex 52793-0470 is a 4-position, 1 mm pitch, right-angle receptacle connector.

  • Positions: 4
  • Pitch: 1 mm
  • Mounting Angle: Right-Angle
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Contact Resistance: 30mΩ
  • Contact Material: Bronze
  • Housing Material: Polyphenylene
  • Length: 10.3mm
  • Width: 4.8mm
  • Height: 4.8mm
  • Suitable for: FFC/FPC (Flat Flexible) connectors applications
  • Packaging: Digi-Reel®
  • Mounting: Surface Mount
  • Contact Plating: Tin
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
