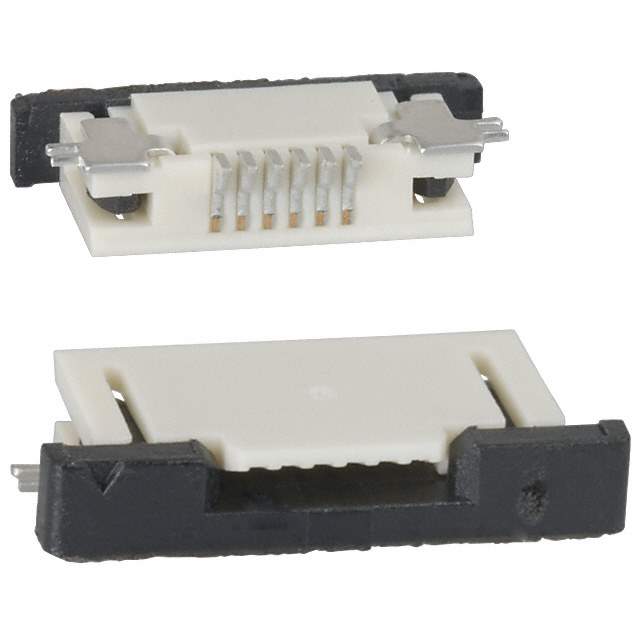

Same model may have multiple batches, images only for reference.

52745-0696

Name: 52745-0696
Brand: Molex, LLC
SKU: 713119
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	52745-0696
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC TOP 6POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Status	Obsolete
Flat Flex Type	FFC, FPC
Mounting Style	SMT, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	6
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Dielectric Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	White
Actuator Color	Black
Mating Cycles	20
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	713119-52745-0696
Popularity	Low
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 52745-0696 CAD Model

Alternative Products

Description

The Molex 713119-52745-0696 is a connector that is designed for flat flex cables (FFC) and flat printed cables (FPC).

Positions: 6
Pitch: 0.020" (0.50mm)
Designed for: surface mount technology (SMT) and right-angle mounting
Contact Material: phosphor bronze
Contact Finish: tin bismuth
Voltage Rating: 50V
Current Rating: 0.5A
Part Status: obsolete
Balance Supply and Demand Status:
Molex Part Number: 713119-52745-0696
Win Source Part Number: 713119-52745-0696
