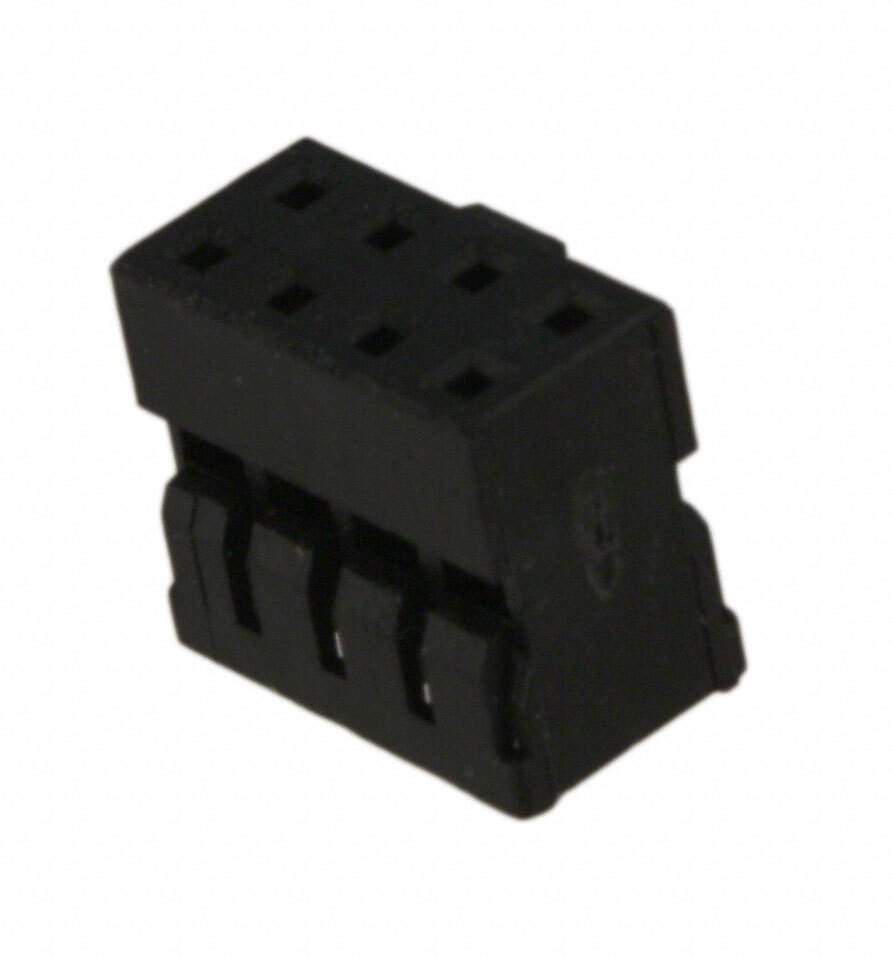

The Molex 51110-0856 is a Picoflex IDT Connector. This connector utilizes Insulation Displacement Technology (IDT) to facilitate quick and easy termination of ribbon cables without needing to strip or solder wires. It's engineered for high-density applications where space is at a premium and reliable connections are paramount.

Applications

• Data communication systems
• Industrial automation equipment
• Consumer electronics
• Medical equipment
• Automotive electronics

Features

• Insulation Displacement Technology (IDT) for rapid cable termination
• High-density contact arrangement enabling compact designs
• Polarized design to prevent incorrect mating
• Robust construction ensuring long-term reliability
• Space-saving form factor

Benefits

• Reduces assembly time and lowers production costs due to IDT termination
• Enables high-density connections in applications with limited space
• Prevents mismating, thus ensuring correct functionality
• Provides long-term performance, reducing the need for frequent replacements
• Facilitates efficient signal transmission

Additional Details

The 51110-0856 connector typically comprises a durable thermoplastic housing and tin-plated contacts for dependable electrical performance. It is designed to terminate ribbon cables with specific wire gauge and pitch specifications. Specific details regarding the number of circuits and voltage/current ratings are available in the Molex datasheet. It is RoHS compliant. The connector is suitable for wire-to-board and wire-to-wire applications when used with compatible mating connectors. Refer to the datasheet for detailed information regarding cable compatibility and recommended termination tooling.
