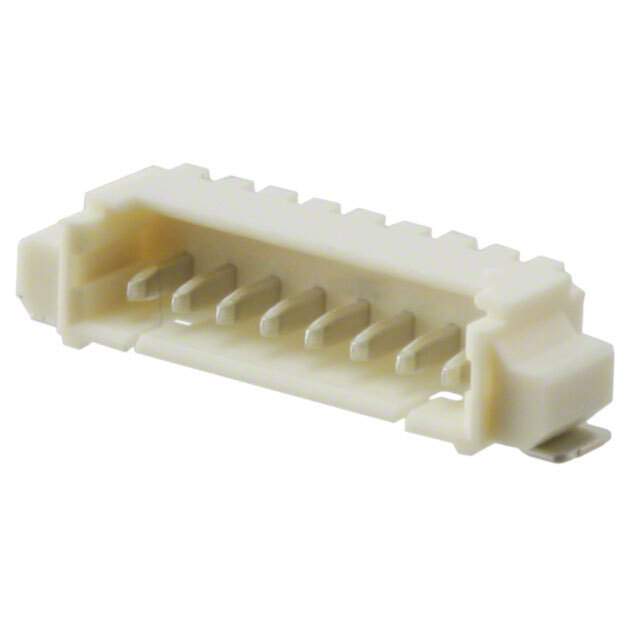

The Molex Header Connector is a male blade contact type connector with 8 positions.

• Mounting Style: It has a right angle SMT mounting style and features solder retention.
• Connector Type: It is a header.
• Positions Loaded: The number of positions loaded is all.
• Insulation Material: The material used for insulation is Polyamide (PA46), Nylon 4/6.
• Applications: The connector is designed for use in automotive, general purpose, industrial, and medical applications.
• Contact Material: The contact material used is Phosphor Bronze.
• Board to Cable/Wire Style: The connector has a board to cable/wire style and a pitch of 0.049" (1.25mm).
• Contact Finish: The contact finish for mating is Tin.
• Contact Finish Thickness: The contact finish thickness is 39.4μin (1.00μm).
• Shrouded: The connector is shrouded with 4 walls.
• Insulation Color: Has a natural insulation color.
• Contact Shape: The contact shape is rectangular.
