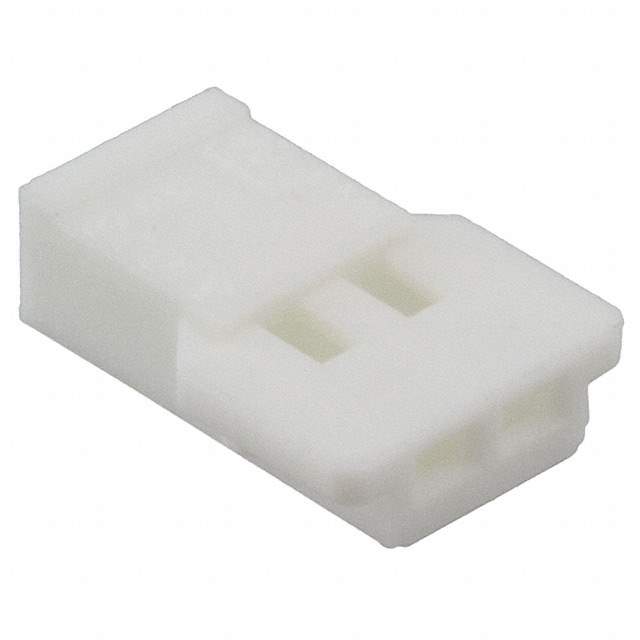

The Molex 51005-0200 is a PicoBlade Connector Housing. It is part of the PicoBlade series known for its compact size and secure connection in wire-to-board applications. This particular housing is a 2-circuit version and accepts 1.25mm pitch PicoBlade crimp terminals.

Applications

• Consumer electronics (e.g., mobile phones, digital cameras)
• LED lighting
• Gaming consoles
• Medical devices
• Small appliances

Features

• Compact Design: Very small footprint for space-constrained applications.
• Positive Lock: Provides a secure connection, preventing accidental disconnections.
• 1.25mm Pitch: Enables high-density connections in small devices.
• Durable Material: Constructed from high-quality materials for long-lasting performance.
• 2 Circuits: Suitable for simple signal and power connections.

Benefits

• Reliable Connection: Ensures stable electrical contact, minimizing signal loss.
• Space Saving: Enables miniaturization of electronic devices.
• Easy to Use: Simplifies assembly and maintenance.
• Cost Effective: Provides a balance of performance and affordability.

Additional Details

The 51005-0200 housing is designed to be used with corresponding PicoBlade crimp terminals and mating headers. It is crucial to consult the official Molex datasheet for comprehensive specifications, including voltage and current ratings, operating temperature range, and mating force requirements. The housing material is typically a high-performance plastic that withstands reflow soldering temperatures. This connector is RoHS compliant, ensuring it meets environmental regulations. The color is typically natural (off-white), but check the datasheet for definitive color information.
