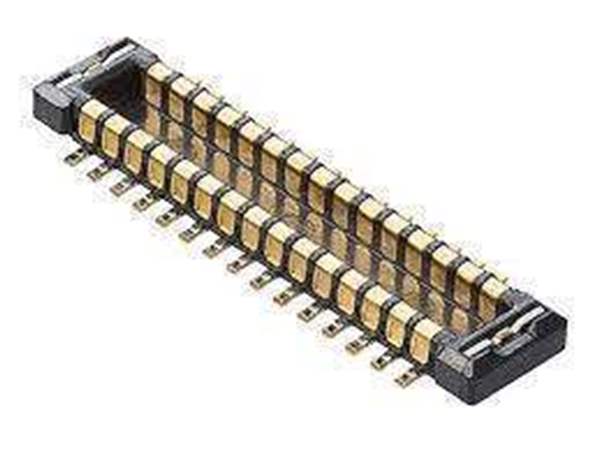

505551-3020 Molex
Same model may have multiple batches, images only for reference.

505551-3020

Part No 505551-3020
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description Board to Board & Mezzanine Connectors SlimStack .40mm Conn Plug 30Ckt
Datasheet
505551-3020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308836-505551-3020
Manufacturer Molex
Category Board to Board & Mezzanine Connectors
Number of Positions 30 Position
Pitch 0.4 mm
Number of Rows 2 Row
Termination Style Solder
Stack Height 0.8 mm
Current Rating 300 mA
Voltage Rating 50 V
Operating Temperature (Min) - 40 C
Ultra Librarian 3D Model Ultra Librarian 505551-3020 CAD Model

Description

SlimStack Board-toBoard Plug, 0.40mm Pitch, B8 Series, 0.80mm Mated Height, 2.50mm Mated Width, 30 Circuits
