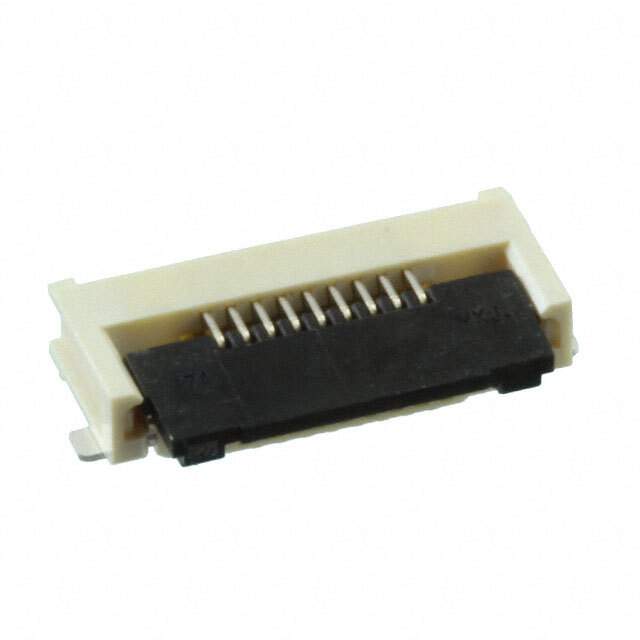

505110-0992 Real Image
Same model may have multiple batches, images only for reference.

505110-0992

Part No 505110-0992
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Connector Accessories Backshell/Cable Clamp Metal Plated Thermoplastic 9 POS Gray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Glass, Nylon, Polyamide
Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Polymer
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 9
Number of Contacts 9
Number of Pins 9
Number of Positions 9
Number of Rows 1
Orientation Right Angle
Pitch 508 µm
Plating Gold
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 993622-505110-0992
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 505110-0992 CAD Model

Description

The Molex, LLC 993622-505110-0992 is a 9-position receptacle FFC, FPC (Flat Flexible) connector that comes in a surface mount package.

  • Product Name: Molex, LLC 993622-505110-0992
  • Manufacturer: Molex, LLC
  • Positions: 9
  • Type: Receptacle FFC, FPC (Flat Flexible) connector
  • Mount: Surface Mount
  • Pitch: 508μm
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Housing Material: Polymer
  • Actuator Material: Glass, nylon, and polyamide
  • Rows: One
  • Shrouded: Unshrouded
  • Plating: Gold
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
