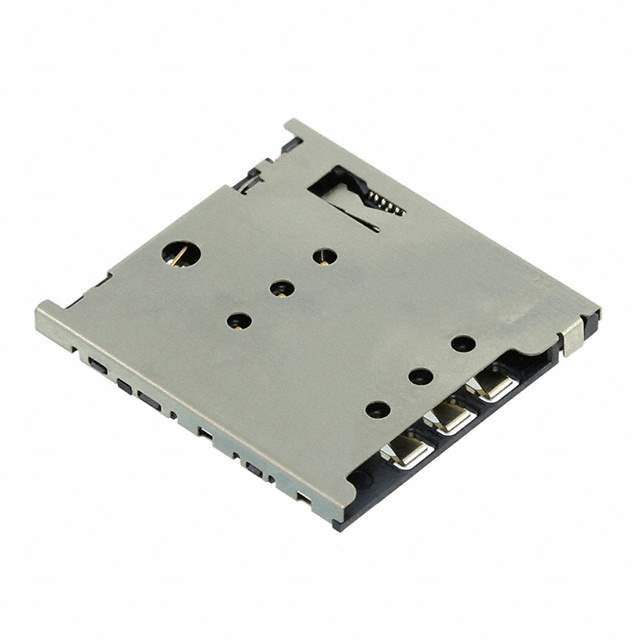

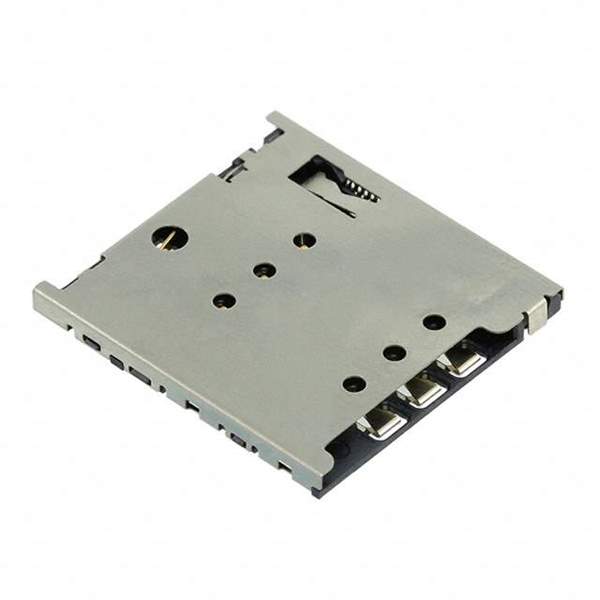

Same model may have multiple batches, images only for reference.

5039600694

Name: 5039600694
Brand: Molex, LLC
SKU: 849313
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	5039600694
Manufacturer	Molex, LLC
Catalog	Memory Connectors - PC Card Sockets
Description	CONN MICRO SIMM PUSH-PUSH R/A / 8 (6 + 2) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr	Molex, LLC
Series	503960
Package	Tape & Reel
Product Status	Obsolete
Card Type	Micro SIM
Number of Positions	8 (6 + 2)
Connector Type	Connector and Ejector
Insertion, Removal Method	Push In, Push Out
Mounting Type	Surface Mount, Right Angle
Features	Switch
Height Above Board	0.056" (1.42mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Contact Finish Thickness	19.7µin (0.50µm)
Base Product Number	503960
Standard Package	1,600 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849313-5039600694
Ultra Librarian 3D Model	Ultra Librarian 5039600694 CAD Model

Description

The 849313-5039600694 is a PC Card Socket connector from Molex, LLC.

Type: Memory Connector
Positions: 8 (6 regular, 2 switch)
Contact Finish: Gold (19.7μin or 0.50μm)
Card Type: Micro SIM
Insertion/Removal Method: Push-In/Push-Out
Mounting: Surface Mount, Right-Angle
Height Above Board: 0.056" (1.42mm)
Package: Tape and Reel
Standard Package: 1,600 pcs
ECCN: EAR99
REACH: Not affected
