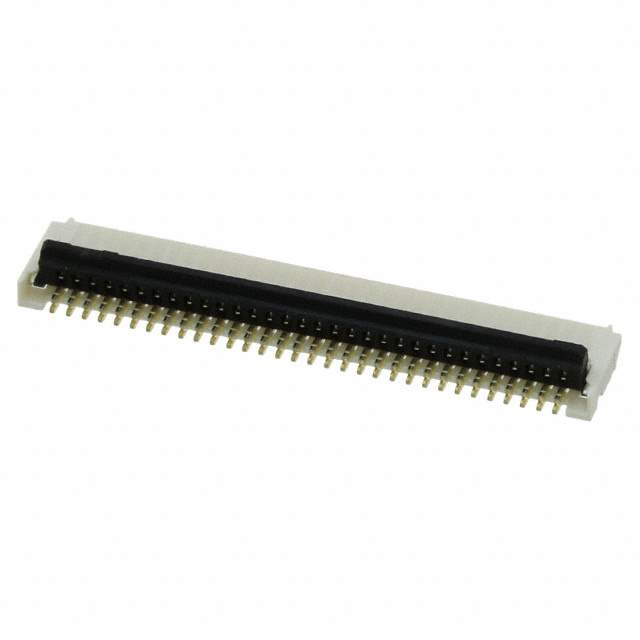

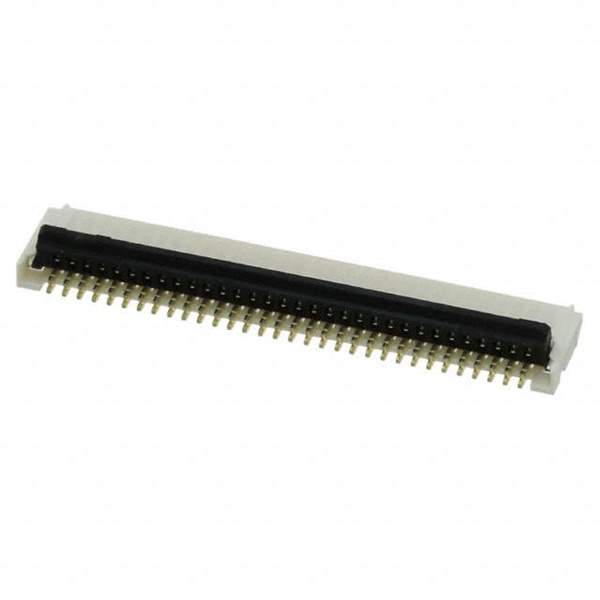

5034803200 Real Image1 5034803200 Real Image2
Same model may have multiple batches, images only for reference.
5034803200 Real Image1 5034803200 Real Image2
5034803200 Real Image1 5034803200 Real Image2
Same model may have multiple batches, images only for reference.

5034803200

Part No 5034803200
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 32POS 0.5MM R/A / 32 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series BackFlip, Easy-On 503480 FHB1
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 32
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0, UL94 HB
Current Rating (Amps) 0.5A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Black
Mating Cycles 10
Base Product Number 503480
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 3,000 pcs
Win Source Part Number 1380867-5034803200
Ultra Librarian 3D Model Ultra Librarian 5034803200 CAD Model

Description

The BackFlip, Easy-On 503480 FHB1 series is a high-quality range of FFC, FPC (Flat Flexible) connector assemblies.

  • Positions: 32
  • Pitch: 0.020" (0.50mm)
  • Features: Solder retention
  • Contact Finish: Gold contact finish
  • Contact Material: Phosphor bronze
  • Height above the board: 0.039" (1.00mm)
  • Temperature Range: -40°C to 85°C
  • Mounting: Surface mountable
  • Package: Tape & reel package
