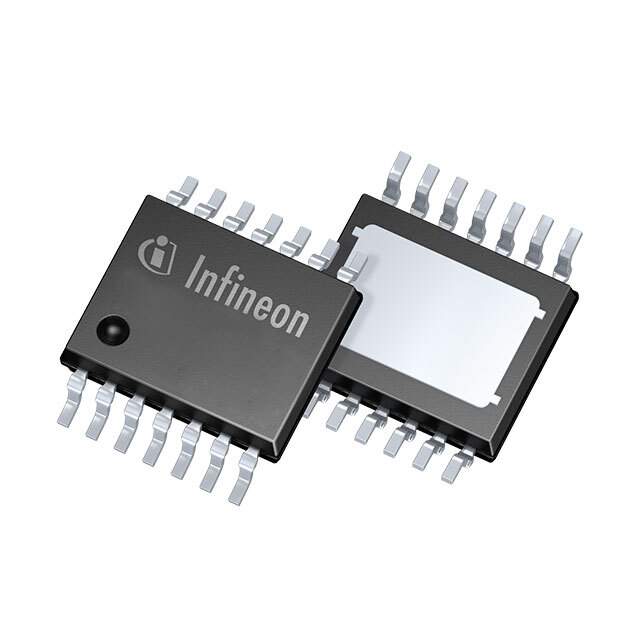

BTS72002EPAXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS72002EPAXUMA1

Part No BTS72002EPAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWTCH N-CHAN 1:1 TSDSO-14 / Power Switch/Driver 1:1 N-Channel 1.2A PG-TSDSO-14-22
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, PROFET®
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 6V ~ 18V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.2A
Rds On (Typ) 66.5mOhm
Input Type Non-Inverting
Fault Protection Over Current, Over Voltage, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TSDSO-14-22
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number BTS72002
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BTS72002EPAXUMA1DKR,BTS72002EPAXUMA1TR,BTS72002EPAXUMA1-ND,BTS72002EPAXUMA1CT,SP001225140
Standard Package 3,000
Win Source Part Number 1117660-BTS72002EPAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTS72002EPAXUMA1 CAD Model

Description

The Infineon Technologies BTS72002EPAXUMA1 is a power distribution switch and load driver that belongs to the automotive, AEC-Q100, PROFET series.

  • Manufacturer: Infineon Technologies
  • Product Name: BTS72002EPAXUMA1
  • Series: Automotive, AEC-Q100, PROFET
  • Output Type: N-channel
  • Input Type: Non-inverting
  • Interface: On/Off
  • Switch Type: General-purpose
  • Fault Protection: Over Current, Overvoltage, Short Circuit, and UVLO
  • Number of Outputs: One
  • Maximum Output Current: 1.2A
  • Output Configuration: High-Side
  • Voltage Load: 6V to 18V
  • Rds On: 66.5mOhm
  • Package: 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
  • Temperature Range: -40°C to 150°C
  • ECCN: EAR99
