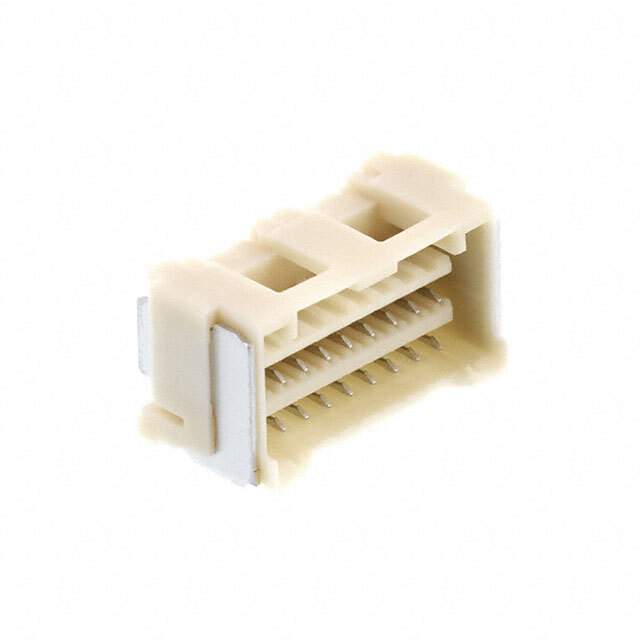

Same model may have multiple batches, images only for reference.

5031481890

Name: 5031481890
Brand: Molex, LLC
SKU: 1380863
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5031481890
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 18P 0.059 TIN SMD R/A / 18 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Molex, LLC
Series	CLIK-Mate 503148
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.059" (1.50mm)
Number of Rows	2
Row Spacing - Mating	-
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Beige
Insulation Height	0.360" (9.14mm)
Contact Length - Post	-
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	Pick and Place, Solder Retention
Current Rating (Amps)	-
Voltage Rating	-
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Shape	-
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	503148
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	550 pcs
Win Source Part Number	1380863-5031481890
Ultra Librarian 3D Model	Ultra Librarian 5031481890 CAD Model

Description

The CLIK-Mate 503148 Receptacle is a versatile and reliable connector for your electrical connections.

Positions: 18
Feature: Pick and place feature and solder retention
Receptacle Type: Forked contact type
Rows: Two rows
Mounting: Suitable for surface mount and right-angle mounting
Material Flammability Rating: UL94 V-0
Contact Material: Copper alloy with a tin finish
Insulation Material: Resin
Applications: Automotive, industrial, and lighting
Package: Tape & reel package of 550 pcs
