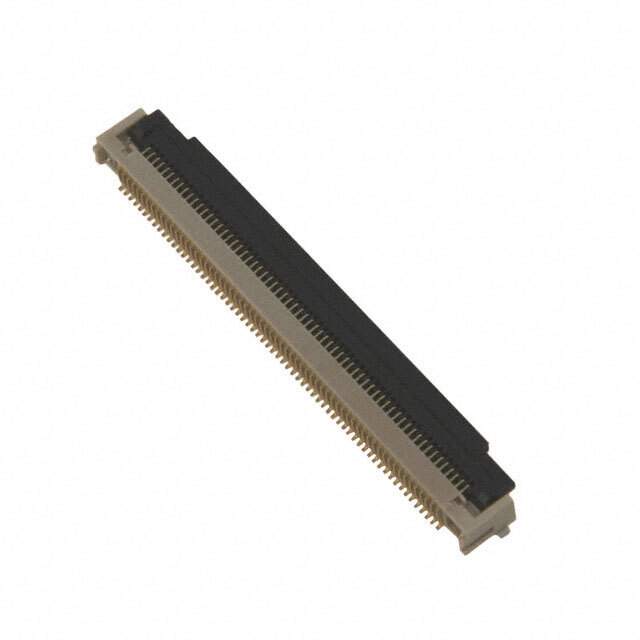

5027906491 Real Image
Same model may have multiple batches, images only for reference.

5027906491

Part No 5027906491
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.50mm (.020") Pitch FPC Connector, ZIF, Easy-On, Double Bottom Contact, 64 Circuits | CONN FPC BOTTOM 64POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 64
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.098" (2.50mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Double Contact, Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 2.00μin (0.051μm)
Housing Color Beige
Actuator Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128972-5027906491
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5027906491 CAD Model

Description

This Molex connector with part number 1128972-5027906491 is a reel packaged component.

  • Positions: 64
  • Pitch: 0.020" (0.50mm)
  • Mounting Style: SMT, right angle
  • Contact Features: Double contact, solder retention, zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 2.00μin (0.051μm)
  • Contact Material: Phosphor bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.098" (2.50mm)
  • Flat Flex Type: FPC
  • Connector/Contact Type: Contacts, bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Flip lock
  • Cable End Type: Tabbed
  • Actuator Material: Polyphenylene sulfide (PPS), glass-filled
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Dielectric Material: Liquid crystal polymer (LCP), glass-filled
  • Operating Temperature Range: -20°C to 85°C
