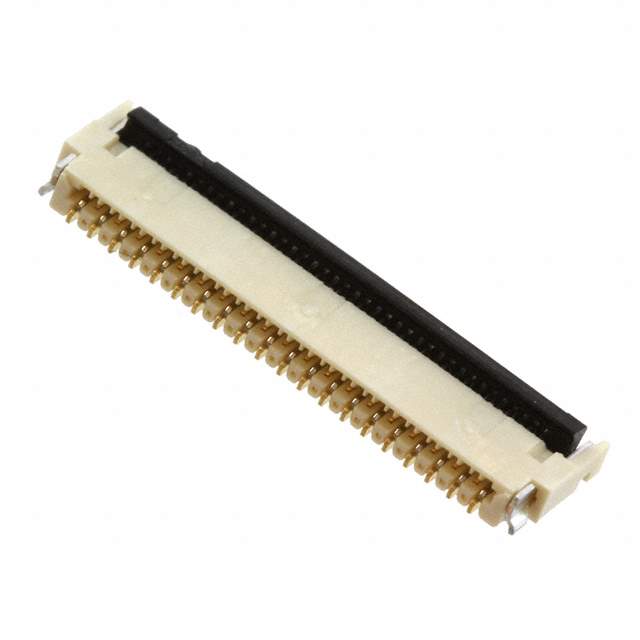

5025983993

Name: 5025983993
Brand: Molex, LLC
SKU: 849646
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5025983993
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 39POS 0.3MM R/A / 39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Molex, LLC
Series	BackFlip, Easy-On 502598
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	39
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.045" (1.14mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0, UL94 HB
Current Rating (Amps)	0.2A
Contact Finish Thickness	3.94µin (0.10µm)
Housing Color	White
Actuator Color	Black
Mating Cycles	10
Base Product Number	502598
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	849646-5025983993
Ultra Librarian 3D Model	Ultra Librarian 5025983993 CAD Model

Alternative Products

Description

The 790635 is a FFC, FPC (Flat Flexible) Connector Assembly from Molex.

Series: BackFlip, Easy-On
Positions: 39
Pitch: 0.012" (0.30mm)
Solder Retention: Yes
Termination: Solder
Contact Finish: Gold
Gold Thickness: 3.94µin (0.10µm)
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material: Polyamide (PA), Nylon, Glass Filled
Voltage Rating: 50V
Current Rating: 0.2A
Mounting: Surface Mount, Right Angle
Temperature Range: -40°C to 105°C
Package: Tape & Reel
Standard Package: 3,000 pieces
Locking Feature: Flip Lock, Backlock
Cable End Type: Tapered
Housing Color: White
Actuator Color: Black
Status: Active
