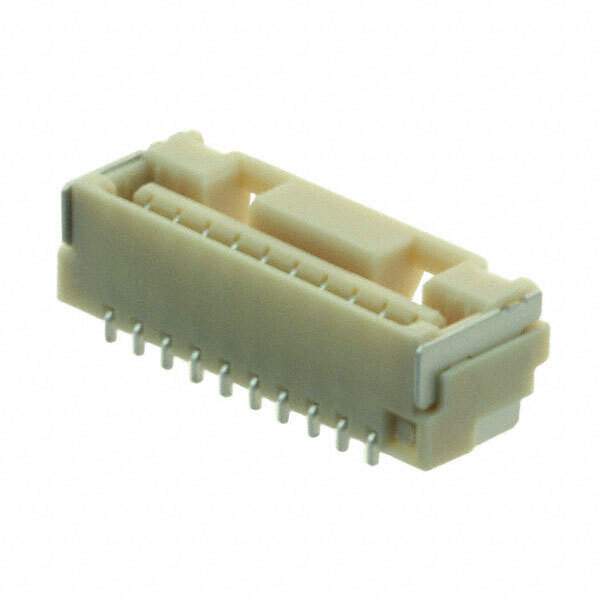

5023861070

Name: 5023861070
Brand: Molex, LLC
SKU: 1332856
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5023861070
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 10P 0.049 TIN SMD R/A / 10 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.049" (1.25mm)
Number of Rows	1
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Natural
Insulation Height	0.215" (5.45mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Solder Retention
Current Rating (Amps)	1A
Voltage Rating	50V
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	502386
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	502386-1070,WM4953CT,WM4953DKR,WM4953TR
Standard Package	1,200
Win Source Part Number	1332856-5023861070
Ultra Librarian 3D Model	Ultra Librarian 5023861070 CAD Model

Description

This is a 10-position receptacle connector from Molex with a solder retention feature.

Positions: 10
Feature: Solder Retention
Contact Type: Forked
Positions Loaded: All
Rows: 1
Termination: Solder
Contact Material: Copper Alloy
Voltage Rating: 50V
Applications: Automotive, General Purpose, Industrial, Lighting, and Medical
Pitch-Mating: 0.049" (1.25mm)
Contact Finish-Mating: Tin with a thickness of 39.4µin (1.00µm)
Mounting Type: Right-Angle
Operating Temperature: -40°C to 105°C
