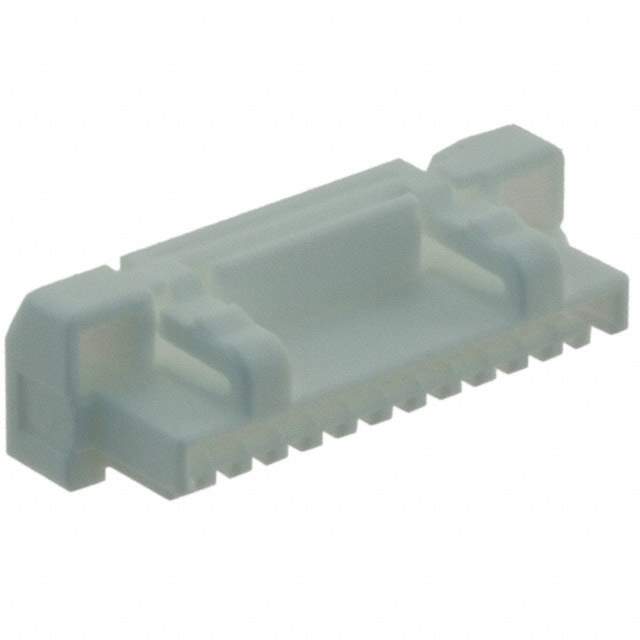

502380-1200 Real Image
Same model may have multiple batches, images only for reference.

502380-1200

Part No 502380-1200
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn Housing RCP 12 POS 1.5mm Crimp ST Cable Mount Natural Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Non-Gendered, Plug
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 1 A
Depth 7.05 mm
Fastening Type Latch
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color White
Housing Material Polybutylene
Insulation Resistance 100 MΩ
Lead Pitch 1.25 mm
Length 16.25 mm
Material Polybutylene
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Cable, Free Hanging
Number of Contacts 12
Number of Pins 12
Number of Positions 12
Number of Rows 1
Orientation Straight
Pitch 1.25 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Width 5.45 mm
Wire/Cable Gauge 28 AWG
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 985516-502380-1200
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502380-1200 CAD Model

Description

The Molex 985516-502380-1200 is a white non-gendered plug connector with 12 positions and a pitch of 1.25mm.

  • Positions: 12
  • Pitch: 1.25mm
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Polybutylene
  • Contact Plating: Gold
  • Termination: Crimp
  • Contact Resistance: 20mΩ
  • Insulation Resistance: 100MΩ
  • Housing Material: Polybutylene
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
  • Applications: Automotive, Consumer Electronics, Industrial Control Systems
