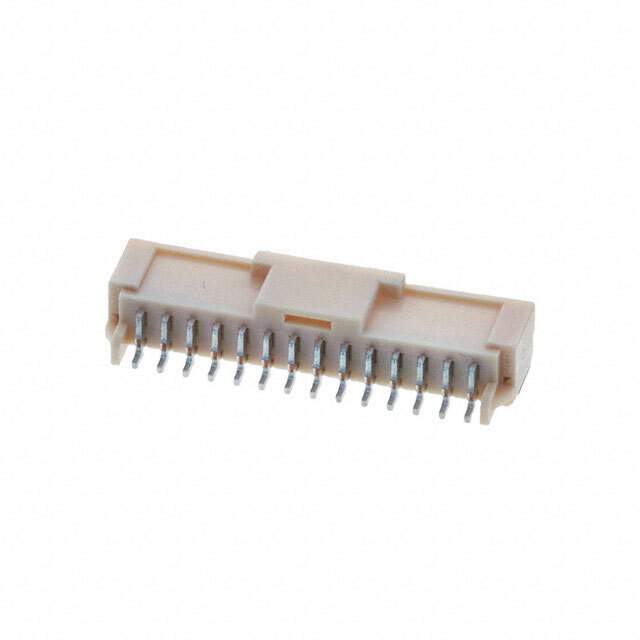

5023521400 Real Image
Same model may have multiple batches, images only for reference.

5023521400

Part No 5023521400
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 14POS 2MM / Connector Header Surface Mount, Right Angle 14 position 0.079" (2.00mm)
Datasheet
5023521400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series DuraClik 502352
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, Industrial
Base Product Number 502352
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856278-5023521400
Ultra Librarian 3D Model Ultra Librarian 5023521400 CAD Model

Description

The 856278-5023521400 is a male pin header connector from Molex, LLC.

  • Series: DuraClik 502352
  • Positions: 14
  • Feature: Solder retention
  • Applications: Automotive and industrial
  • Package: Tape & reel or cut tape
  • Contact Material: Copper alloy
  • Insulation Material: Polyamide (PA) or nylon
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Package Quantity: 700 pcs
