Same model may have multiple batches, images only for reference.

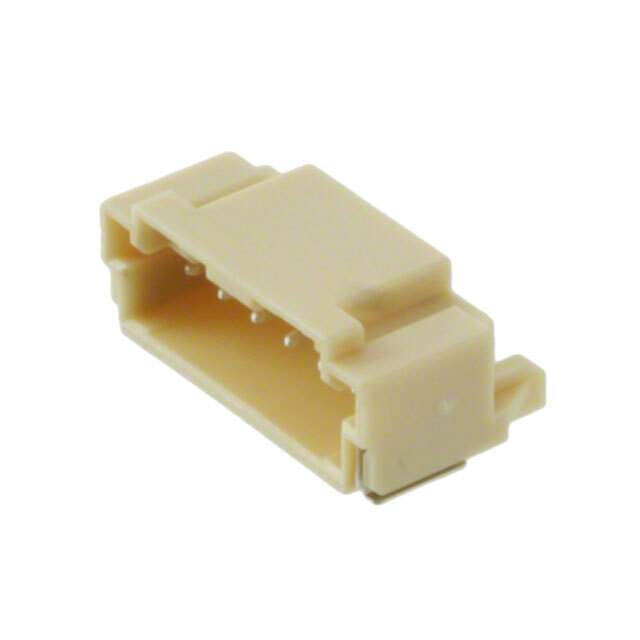

5023520600 Real Image
Same model may have multiple batches, images only for reference.

5023520600

Part No 5023520600
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 2MM / Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
Datasheet
5023520600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series DuraClik 502352
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Mating 0.136" (3.45mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, Industrial
Base Product Number 502352
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856276-5023520600
Ultra Librarian 3D Model Ultra Librarian 5023520600 CAD Model

Description

The DuraClik 502352 series is a header connector with 6 positions and 1 row.

  • Positions: 6
  • Rows: 1
  • Feature: Solder retention
  • Application: Board-to-cable/wire
  • Contact Material: Copper alloy
  • Standard Package: 700 pieces
  • Insulation Material: Polyamide (PA), nylon
  • Color: Natural
  • Mounting Type: Surface mount, right angle
  • Shroud: 4 walls
  • Contact Finish (Mating & Post): Tin
  • Insulation Height: 0.252" (6.40mm)
  • Contact Shape: Square
  • Contact Length (Mating): 0.136" (3.45mm)
  • Operating Temperature Range: Vendor undefined
  • Applications: Automotive and industrial
