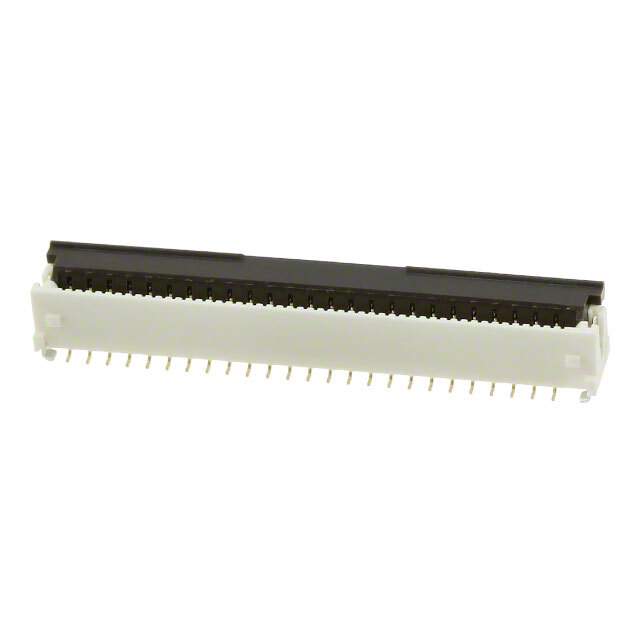

5019515010 Real Image
Same model may have multiple batches, images only for reference.

5019515010

Part No 5019515010
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.50mm (.020") Pitch Easy-On FFC/FPC Connector, Vertical, SMT, Gold Plating, 50 Circuits | CONN FFC VERT 50POS 0.50MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Flat Flex Type FFC, FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.159" (4.04mm)
Locking Feature Flip Lock
Cable End Type Straight, Tapered
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA9T), Nylon 9T, Glass Filled
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.4A
Contact Finish Thickness 3.94μin (0.10μm)
Housing Color White
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128950-5019515010
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5019515010 CAD Model

Description

The Molex 1128950-5019515010 is a 50-position SMD connector that comes with a pitch of 0.020 inches (0.50mm) and a voltage rating of 50V.

  • Positions: 50
  • Mounting Type: SMD
  • Pitch: 0.020 inches (0.50mm)
  • Voltage Rating: 50V
  • Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94μin (0.10μm)
  • Height Above Board: 0.159 inches (4.04mm)
  • FFC, FPC Thickness: 0.30mm
  • Locking Feature: Flip Lock
  • Dielectric Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Mating Cycle: 20
  • Operating Temperature: -25°C to 85°C
  • Manufacturer: Molex
