Part No 501912-2590
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors

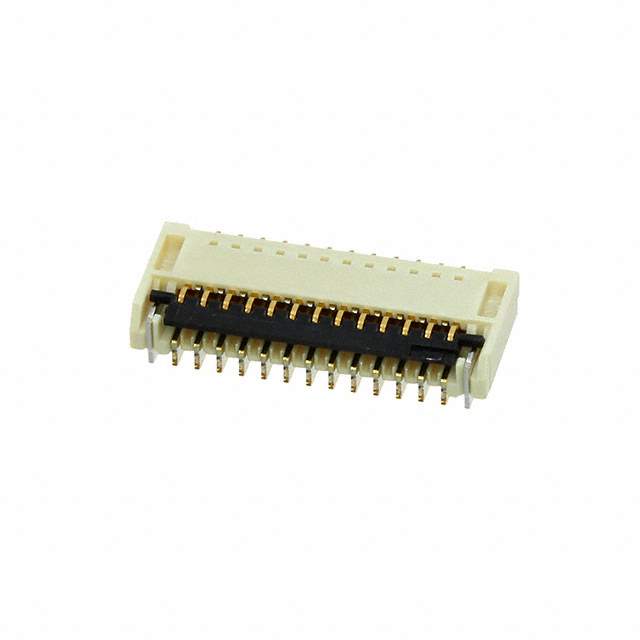

Description CONN FPC BOTTOM 25POS 0.30MM R/A
Datasheet
501912-2590 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Polymer, Glass Filled
Actuator Material Polymer, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -20°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Mating Cycles 20
Win Source Part Number 1005890-501912-2590
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 501912-2590 CAD Model

Description

The Molex Connector Corporation FPC connector is a solder retention type connector that features a flip lock for easy cable installation.

  • Positions: 25
  • Pitch: 0.012" (0.30mm)
  • Voltage Rating: 50V
  • Current Rating: 0.2A
  • Housing and Actuator Materials: Polymer and glass filled materials with a UL94 V-0 flammability rating
  • Mounting Type: Surface Mounted
  • Orientation: Right Angled
  • Mating Cycle: 20
  • FFC and FCB Thickness: 0.20mm
  • Cable End Type: Tapered
