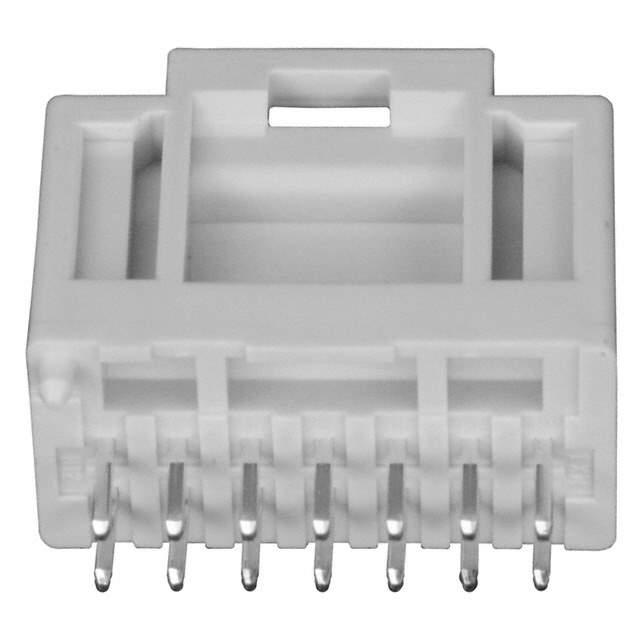

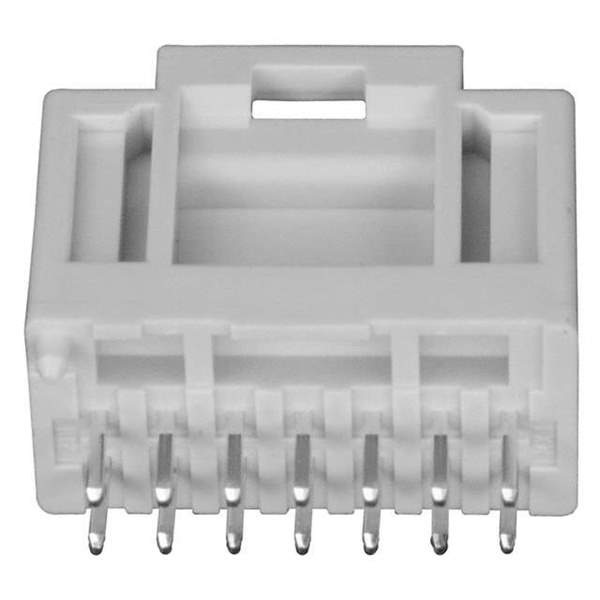

Same model may have multiple batches, images only for reference.

501645-1420

Name: 501645-1420
Brand: Molex, LLC
SKU: 969081
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	501645-1420
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Shrouded Header PL 14 POS 2.5mm Solder RA Thru-Hole Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Connector Type	Male Pin
Contact Material	Brass
Contact Plating	Tin
Country of Origin	VN
Current Rating	2 A
Depth	8.2 mm
Fastening Type	Latch
Gender	Male
Glow Wire Compliant	Non-compliant
Height	12.25 mm
Housing Color	Natural
Housing Material	Nylon
Lead Pitch	2 mm
Length	16 mm
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	250 V
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	14
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Orientation	Vertical
Pitch	2 mm
Plating	Tin
RoHS	Compliant
Row Spacing	2.0066 mm
Termination	Solder
Voltage Rating	250 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Weight	923.599114 mg
Win Source Part Number	969081-501645-1420
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 501645-1420 CAD Model

Alternative Products

Description

The Molex Male Pin Connector is a high-quality connector that is perfect for a variety of applications.

Pitch: 2mm
Number of Contacts: 14
Color: Natural
Orientation: Vertical
Termination: Solder
RoHS Compliant: Yes
Maximum Operating Temperature: 85°C
Supply and Demand Status: Short Supply
Popularity: Low
