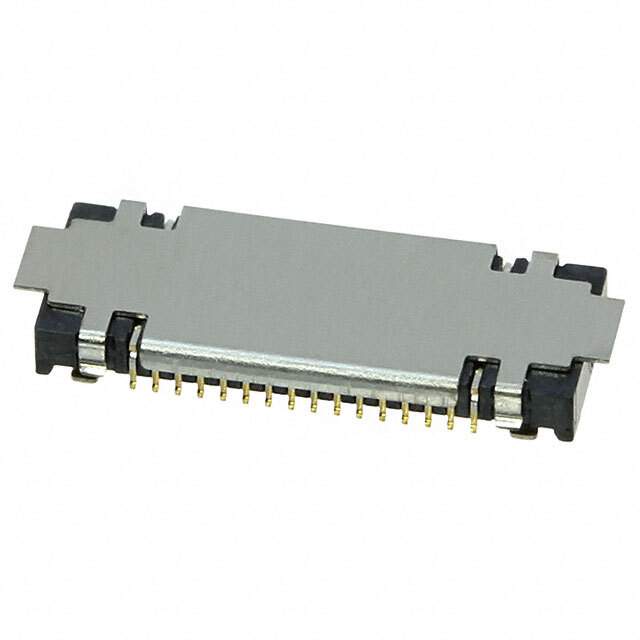

Same model may have multiple batches, images only for reference.

5015273230

Get a Quote

Part No	5015273230
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 32POS SMD GOLD / 32 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Molex, LLC
Series	SlimStack 501527
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	32
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	1.3mm
Height Above Board	0.048" (1.22mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,500 pcs
Win Source Part Number	1380849-5015273230
Ultra Librarian 3D Model	Ultra Librarian 5015273230 CAD Model

Description

The SlimStack 501527 series is a high-quality array of edge type connectors designed for mezzanine applications in the field of electronic components.

Number of Positions: 32
Pitch: 0.016" (0.40mm)
Contact Type: Receptacle, Center Strip
Contact Finish: Gold
Mounting Type: Surface Mount
Package: Tape & Reel (TR)
Height Above Board: 0.048" (1.22mm)
Mated Stacking Height: 1.3mm
Status: Obsolete
