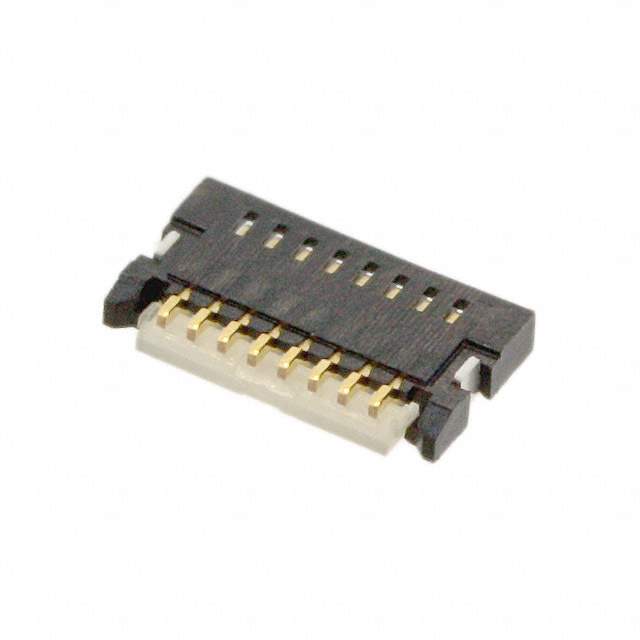

5014610891 Real Image
Same model may have multiple batches, images only for reference.

5014610891

Part No 5014610891
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 8POS 0.50MM R/A / 8 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.12mm
Height Above Board 0.031" (0.80mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon, Glass Filled
Actuator Material Polyamide (PA46), Nylon 4/6, Glass Filled
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.3A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color Black
Actuator Color White
Mating Cycles 20
Base Product Number 501461
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number WM14413DKR,WM14413CT,5014610891-ND,WM14413TR,501461-0891
Standard Package 3,000
Win Source Part Number 1333375-5014610891
Ultra Librarian 3D Model Ultra Librarian 5014610891 CAD Model

Description

The Molex 5014610891 is a high-quality electronic component manufactured by Molex.

  • Mounting: Surface Mount, Right Angle
  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94μin (0.10μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Voltage Rating: 50V
  • Current Rating: 0.3A
  • Temperature Range: -40°C to 85°C
  • RoHS3 Compliant: Yes
  • Usage: Common-used part in the electronic industry
