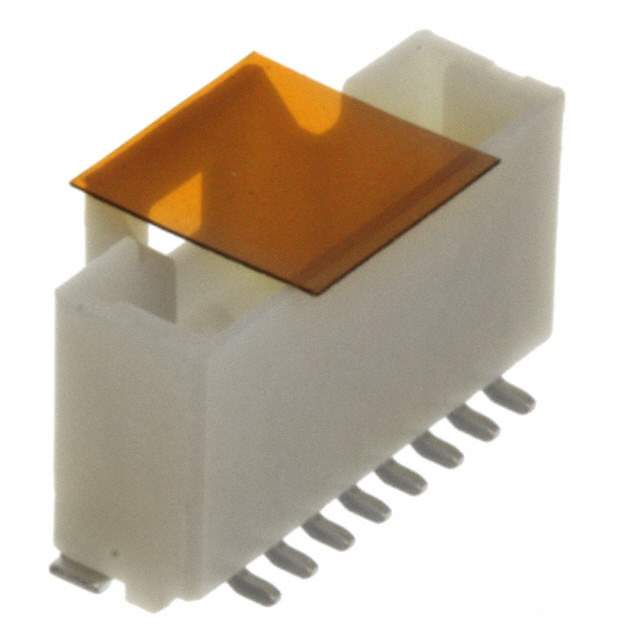

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Molex
Packaging Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.213" (5.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 40.0μin (1.02μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA46), Nylon 4/6
Features Pick and Place, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808166-501331-0807
Ultra Librarian 3D Model Ultra Librarian 501331-0807 CAD Model

Description

The electronic component Molex 808166-501331-0807 is a product of Molex.

  • Product Type: Header Connector
  • Positions: 8
  • Contact Type: Male Pin
  • Mounting Style: SMD
  • Fastening Type: Pick and Place, Solder Retention, Latch Holder
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Shrouding: Shrouded - 4 Wall
  • Insulation Color: Natural
  • Contact Finish: Tin
  • Pitch-Mating: 0.039" (1.00mm)
  • Applications: General Purpose
