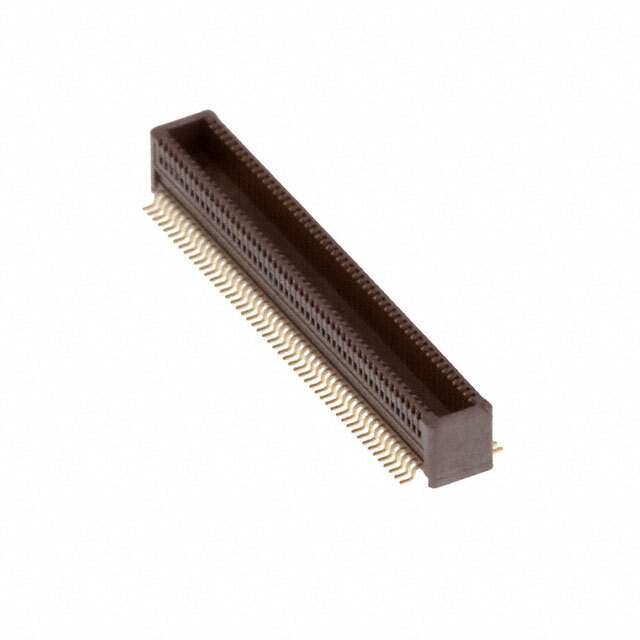

5010171008 Molex
Same model may have multiple batches, images only for reference.

5010171008

Part No 5010171008
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 100POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206762-5010171008
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series 501017
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 100
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 4mm
Height Above Board 0.120" (3.05mm)
Ultra Librarian 3D Model Ultra Librarian 5010171008 CAD Model

Description

100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
