Part No 5009130302
Manufacturer Molex, LLC
Catalog Rectangular Connectors

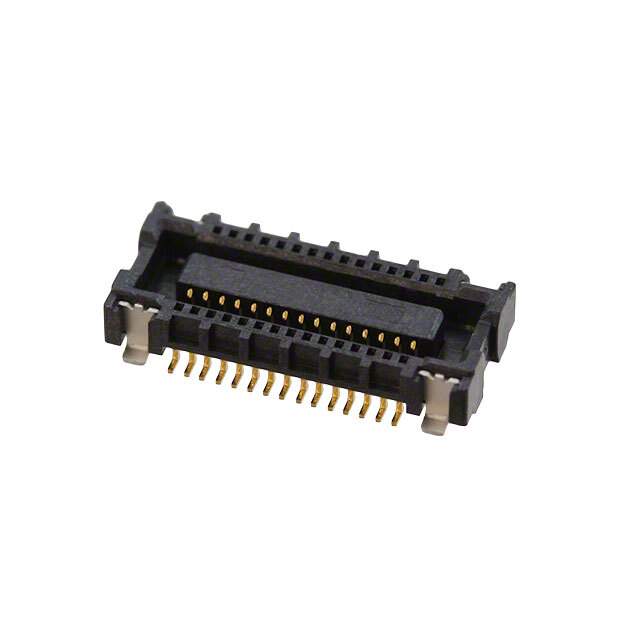

Description 0.40mm (.016") Pitch SlimStack Board-to-Board Receptacle, Surface Mount, Dual Row, Vertical Stacking, Mated Height of 1.80mm | CONN RCPT 30POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00μin (0.203μm)
Mated Stacking Heights 1.8mm
Height Above Board 0.063" (1.60mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128921-5009130302
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5009130302 CAD Model

Description

The Molex 1128921-5009130302 is a 30-position center strip contact receptacle connector with a pitch of 0.016 inches (0.40mm) and a height above board of 0.063 inches (1.60mm).

  • GPT Description: This connector is mounted using surface mount technology (SMT) and features solder retention.
  • GPT Description: The contact finish is gold with a thickness of 8.00μin (0.203μm).
  • GPT Description: The supply and demand status is balanced and the manufacturer pack quantity is 1.
  • GPT Description: The MSL level is 1 (Unlimited).
