Same model may have multiple batches, images only for reference.

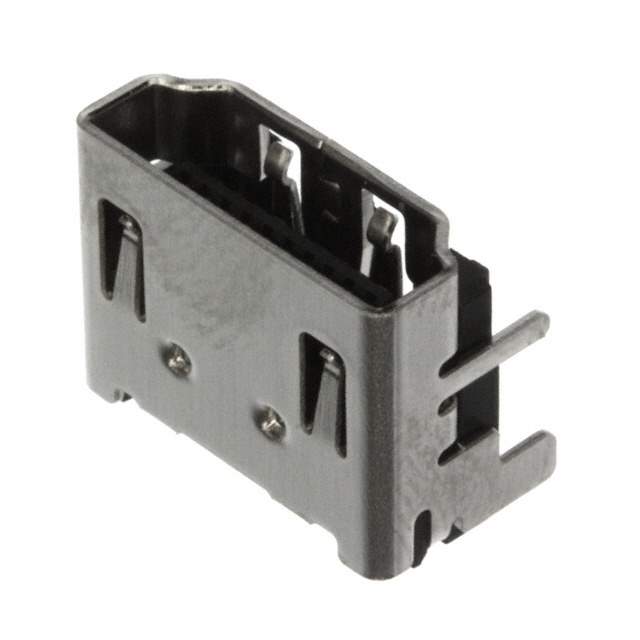

47151-0001 Real Image
Same model may have multiple batches, images only for reference.

47151-0001

Part No 47151-0001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors —USB, DVI, HDMI Connector Assemblies
Description Conn Circular PIN 19 POS Solder Cup ST Cable Mount 9 Terminal 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Metal
Mounting SMD (SMT)
Case / Package Metal
Color Black
Contact Material Gold, Nickel
Contact Plating Gold
Country of Origin HK
Current Rating 750 mA
Depth 12.15 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Height 6.43 mm
Housing Color Black
Housing Material Thermoplastic
Lead Free Yes
Length 15 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 40 V
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 19
Number of Contacts 19
Number of Ports 1
Number of Positions 19
Number of Rows 2
Number of Terminals 19
Orientation Right Angle
Packaging Cut Tape
Pitch 500 µm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Shielded
Termination Solder
Voltage Rating 40 V
Voltage Rating (DC) 40 V
Weight 2.050011 g
Win Source Part Number 967011-47151-0001
Categories Barrel - Audio Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 47151-0001 CAD Model

Description

The Molex, LLC 967011-47151-0001 is a female solder termination connector that is used in various barrel-audio connector applications. It has a Win Source Part Number of 967011-47151-0001 and is packaged in cut tape. The contact material is made of gold and nickel and has a gold contact plating. The supply and demand status is shortage. The Molex, LLC 967011-47151-0001 is a reliable and efficient connector that is suitable for various applications.
