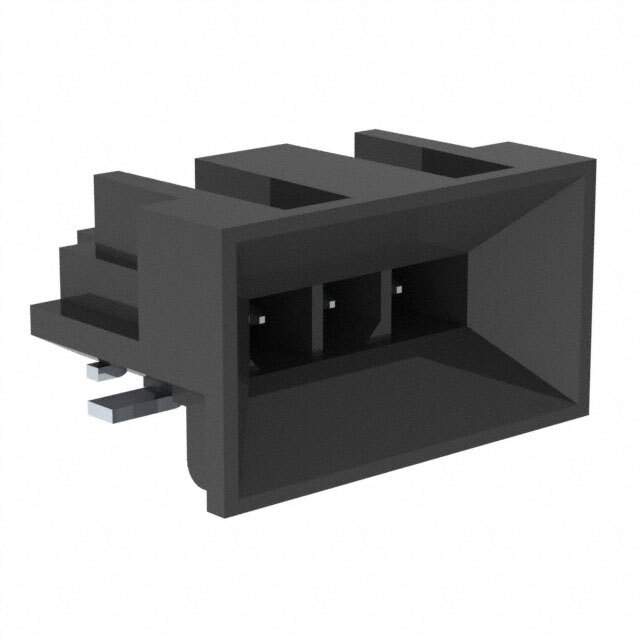

The Molex 46622-0300 is a Milli-Grid Housing designed for high-density, signal applications where space is at a premium. This housing provides a secure and reliable connection within the Milli-Grid connector system. It is constructed with precision to ensure proper mating and consistent performance in demanding environments.

Applications:

• Data and telecommunications
• Medical equipment
• Industrial controls
• Consumer electronics
• Automotive systems

Features:

• Milli-Grid Series
• 3 Circuits
• Single Row
• High-Density Design
• Positive Lock

Benefits:

• Space Saving: The Milli-Grid series offers a high-density design, maximizing board space utilization.
• Reliable Connection: The positive lock feature ensures secure mating, preventing accidental disconnection.
• Ease of Assembly: Designed for efficient assembly, reducing production time and costs.
• Versatile Usage: Suitable for various signal applications due to its compact size and reliable performance.

Additional Details:

The 46622-0300 housing is made from a high-performance thermoplastic material offering excellent electrical insulation and mechanical strength. It is designed to mate with corresponding Milli-Grid crimp terminals. Proper crimping is critical to ensure a reliable electrical connection. The housing protects the terminals and maintains alignment, ensuring consistent signal integrity. The Milli-Grid system is known for its robust performance and ability to support high-density applications.
