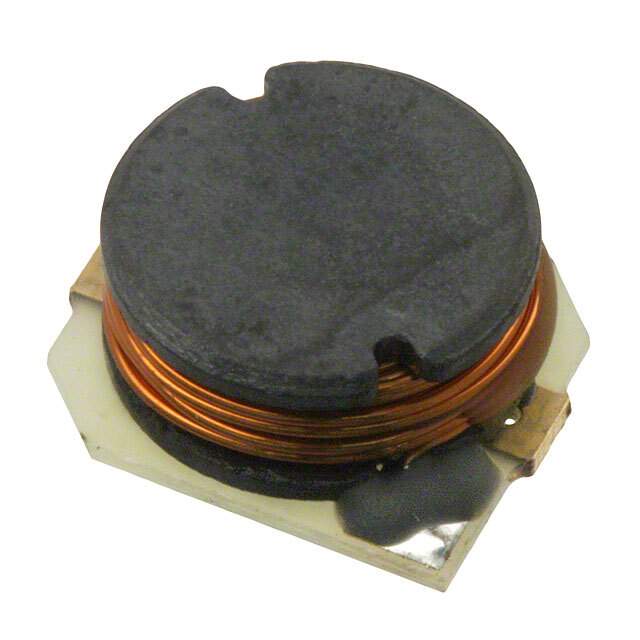

SDR1105-120ML Real Image
Same model may have multiple batches, images only for reference.

SDR1105-120ML

Part No SDR1105-120ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 3.8A 48 MOHM SMD / SMD Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 12μH
Tolerance ±20%
Current Rating (Amps) 3.8A
Current - Saturation 8A
Shielding Unshielded
DC Resistance (DCR) 48mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Part Number Series SDR1105
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813168-SDR1105-120ML
Ultra Librarian 3D Model Ultra Librarian SDR1105-120ML CAD Model

Description

The SDR1105-120ML is a wirewound inductor from Bourns Inc.

  • Inductance: 12μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance: 48mOhm
  • Current Saturation: 8A
  • Operating Temperature Range: -40°C to 125°C
  • Package: Non-standard Reel
  • Dimensions: 0.437" L x 0.394" W (11.10mm x 10.00mm)
  • Height: 0.197" (5.00mm)
