Same model may have multiple batches, images only for reference.

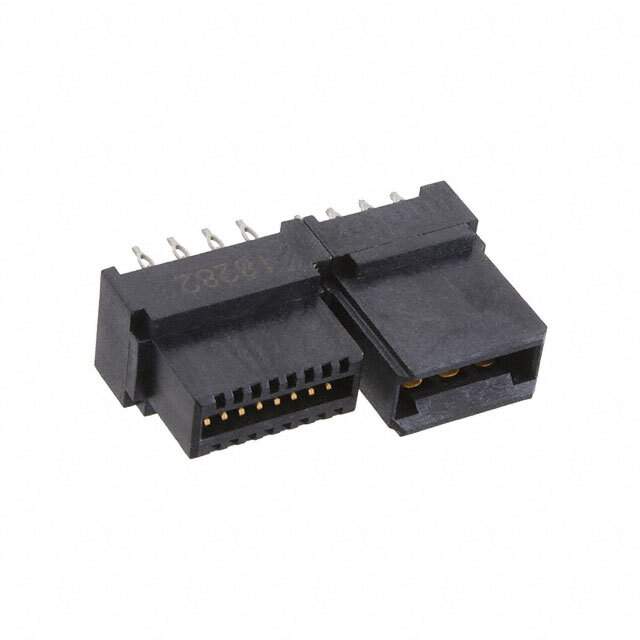

0461142161 Real Image
Same model may have multiple batches, images only for reference.

0461142161

Part No 0461142161
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description CONN RCPT LPHPOWER 18POS PCB / 18 Connector Receptacle, Outer Shroud Contacts Through Hole Black LPHPower
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Manufacturer Molex
Packaging Tray
Connector Type Receptacle, Outer Shroud Contacts
Connector Style LPHPower
Number of Positions 18
Number of Positions Loaded All
Number of Rows 2
Mounting Through Hole
Termination Press-Fit
Contact Layout, Typical 16 Signal, 2 Power
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 250V
Base Product Number 046114
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 046114-2161,461142161,46114-2161,0461-14-2161,0461142161-ND,WM23309
Standard Package 540
Win Source Part Number 1332908-0461142161
Ultra Librarian 3D Model Ultra Librarian 0461142161 CAD Model

Description

The Molex 1332908-0461142161 is a 18-position outer shroud contact receptacle connector.

  • Application: Designed for specialized backplane applications and is commonly used in industrial and telecommunications industries.
  • Pitch: 0.165" (4.20mm)
  • Standard Package: 540
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Compliance: RoHS3 compliant and unaffected by REACH.
