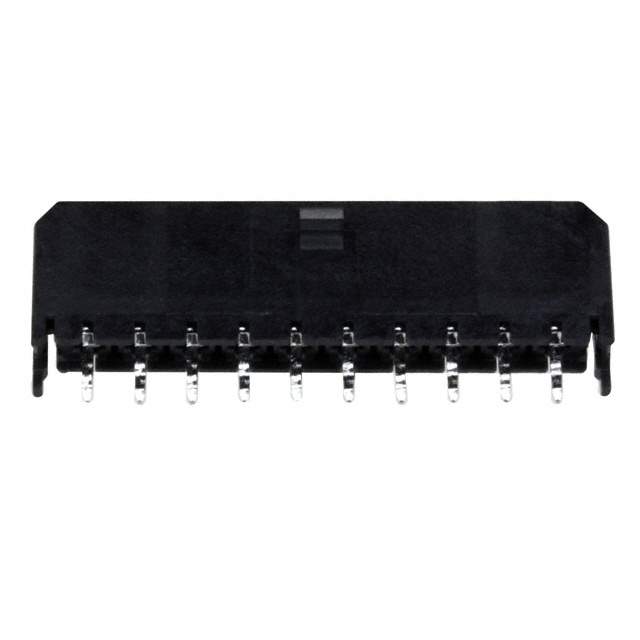

0436501015 Real Image
Same model may have multiple batches, images only for reference.

0436501015

Part No 0436501015
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 3MM / Connector Header Through Hole 10 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM2474-NDR,43650-1015-TR54,436501015,43650-1015,WM2474
Standard Package 918
Win Source Part Number 1332899-0436501015
Ultra Librarian 3D Model Ultra Librarian 0436501015 CAD Model

Description

The Molex 1332899-0436501015 is a 10-position header connector designed for board-to-cable or wire applications.

  • Positions: 10
  • Design: 1-Row
  • Contact Type: Male Pins
  • Fastening Type: Locking Ramp
  • Voltage Rating: -
  • Material Flammability: UL94 V-0
  • Contact Material: Brass
  • Contact Finish: Tin
  • Applications: General-Purpose, Medical, Military, Telecommunications
  • Mounting Type: Through-Hole
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Pitch: 0.118" (3.00mm)
  • Mated Stacking Height: 17.56mm
  • Shrouding: Shrouded with 4 Walls
  • Insulation Height: 0.390" (9.91mm)
  • ROHS3 Compliant: Yes
  • Packaging: Tray
