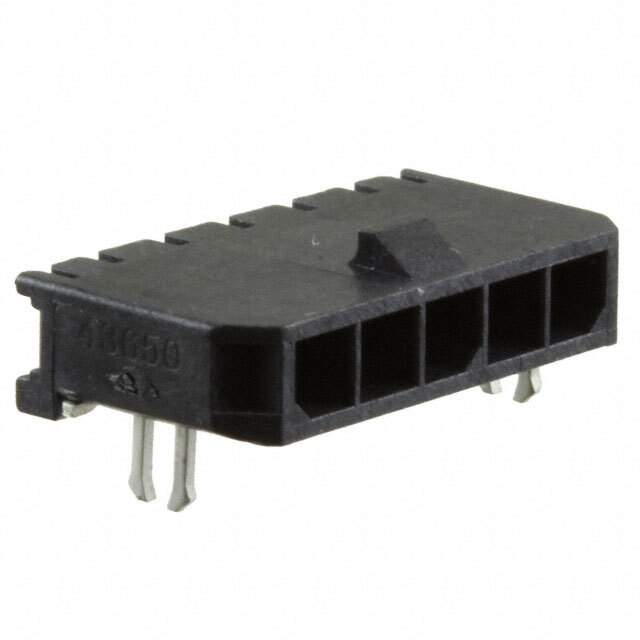

436500511

Name: 436500511
Brand: Molex, LLC
SKU: 763638
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	436500511
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	MICROFIT 3.0 SR RA SMT CLIP 30AU
Datasheet	436500511 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Series	Micro-Fit 3.0 43650
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.172" (4.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Mated Stacking Heights	17.56mm
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	General Purpose, Medical, Military, Telecommunications
Win Source Part Number	763638-436500511
Popularity	Medium
Supply and Demand Status	Limited
Family Name	43650
Introduction Date	July 08, 2010
ECCN	EAR99
Country of Origin	China, Mexico, Mexico, Puerto Rico, Puerto Rico, United States of America, United States of America, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 436500511 CAD Model

Description

The Molex, LLC 763638-436500511 is a medium popularity electronic component that is commonly used in general purpose, medical, military, and telecommunications applications.

Series: Micro-Fit 3.0 43650
Positions: 5
Board Lock: Yes
Connector Type: Header
Contact Type: Male Pins
Positions Loaded: All
Mounting Style: Surface Mount, Right Angle
Termination: Solder
Contact Material: Brass
Contact Finish-Mating: Gold
Halogen Free: Yes
Shrouding: 4 Wall
