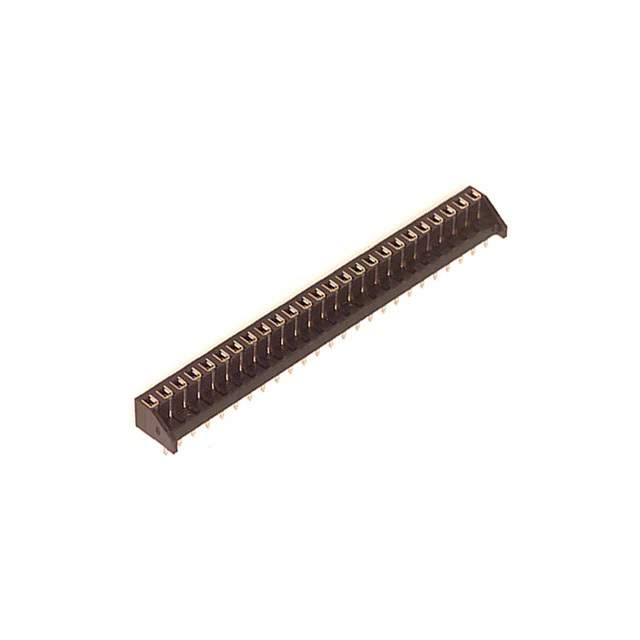

MDF7-25S-2.54DSA(55)

Name: MDF7-25S-2.54DSA(55)
Brand: Hirose Electric Co Ltd
SKU: 788392
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MDF7-25S-2.54DSA(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	Conn Socket Strip RCP 25 POS 2.54mm Solder ST Thru-Hole Pack / CONN RECEPT 25POS SINGLE TIN
Datasheet	MDF7-25S-2.54DSA(55) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	MDF7
Packaging	Bulk
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	25
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	78.7μin (2.00μm)
Insulation Color	Black
Insulation Height	0.197" (5.00mm)
Contact Length - Post	0.118" (3.00mm)
Operating Temperature Range	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	250VAC
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	78.7μin (2.00μm)
Win Source Part Number	788392-MDF7-25S-2.54DSA(55)
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MDF7
Introduction Date	January 02, 1997
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian MDF7-25S-2.54DSA(55) CAD Model

Alternative Products

Description

The MDF7-25S-2.54DSA(55) from Hirose Electric Co Ltd. is a board-to-board connector.

Type: Through-hole receptacle
Positions: 25
Pitch: 0.100" (2.54mm)
Voltage Rating: 250VAC
Current Rating: 3A
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
