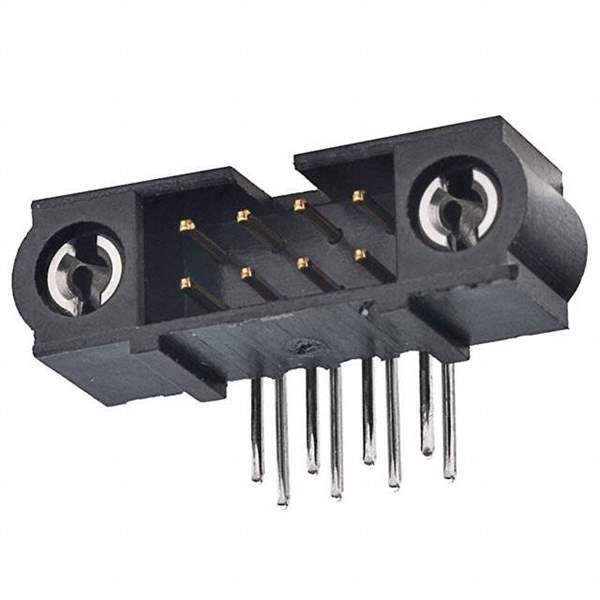

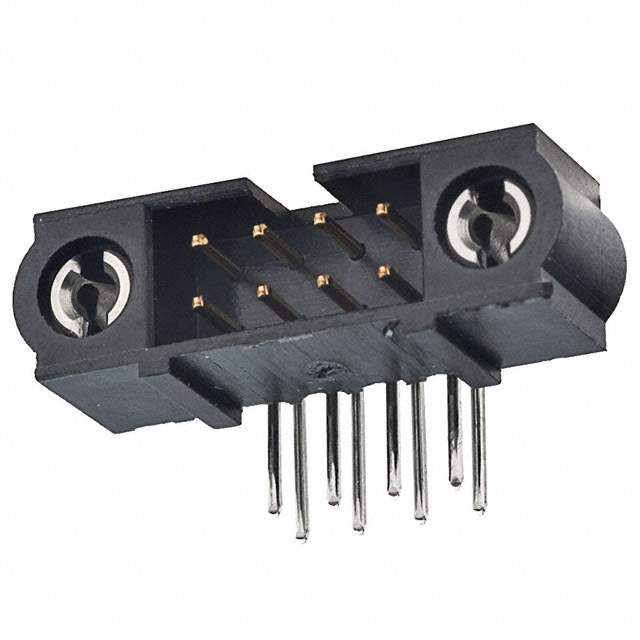

M80-5L10842MC

Name: M80-5L10842MC
Brand: Harwin Inc.
SKU: 1349863
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-5L10842MC
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 2MM / Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
Datasheet	M80-5L10842MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Turn Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.218" (5.55mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	120V
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-5L1
Standard Package	14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349863-M80-5L10842MC
Ultra Librarian 3D Model	Ultra Librarian M80-5L10842MC CAD Model

Description

The Datamate J-Tek rectangular connector is a male pin header that is used in various electronic devices. Datamate J-Tek.

Positions: 8
Features: Keying Slot, Mating Flange
Pitch-Mating: 0.079 inches
Mounting Type: Through Hole, Right Angle
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 29.5µin (0.75µm)
Contact Finish-Post: Tin
Contact Finish Thickness-Post: 118.1µin (3.00µm)
Current Rating: 2.2A
Voltage Rating: 120V
Temperature Range: -55°C to 125°C
Packaging: Tube
