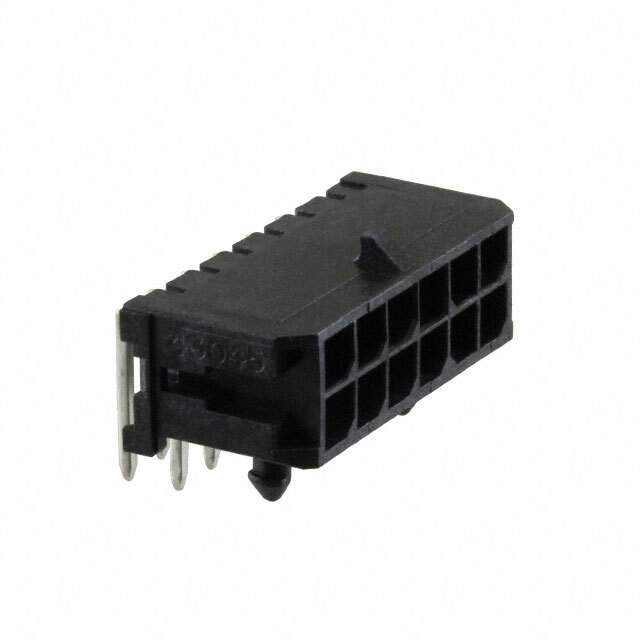

0430451202 Real Image
Same model may have multiple batches, images only for reference.

0430451202

Part No 0430451202
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 3MM / Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043045
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 043045-1202,43045-1202,WM1824,WM1824-NDR,430-45-1202-P,043045-1202-P,0430451202-P,43045-1202-P,430451202,430451202-P
Standard Package 1,008
Win Source Part Number 1332626-0430451202
Ultra Librarian 3D Model Ultra Librarian 0430451202 CAD Model

Description

The Molex Rectangular Connector Header is a 12-position male pin connector with solder termination and locking ramp fastening type.

  • Pitch: 0.118" (3.00mm)
  • Contact Finish: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Contact Material: Brass
  • Applications: General Purpose, Medical, Military, and Telecommunications Equipment
