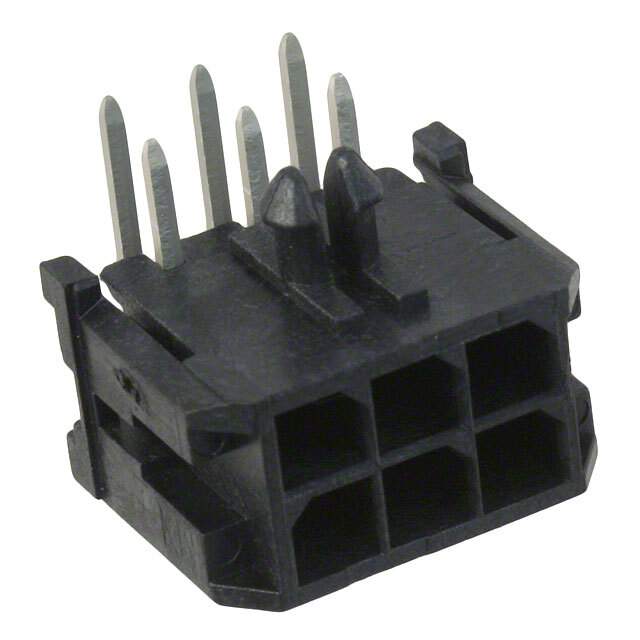

Same model may have multiple batches, images only for reference.

0430450601

Name: 0430450601
Brand: Molex, LLC
SKU: 1332760
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0430450601
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 3MM / Connector Header Through Hole, Right Angle 6 position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.125" (3.18mm)
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	8A
Voltage Rating	600V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	043045
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	430450601,43045-0601,WM4037
Standard Package	1,728
Win Source Part Number	1332760-0430450601
Ultra Librarian 3D Model	Ultra Librarian 0430450601 CAD Model

Description

The 1332760-0430450601 is a rectangular connector header manufactured by Molex.

Mounting Style: Through-Hole, Right-Angle
Feature: Board Lock
Voltage Rating: 600V
Current Rating: 8A
RoHS3 Compliant: Yes
Other Part Numbers: 430450601, 43045-0601, WM4037
Applications: General Purpose, Medical, Military, and Telecommunications
