Same model may have multiple batches, images only for reference.

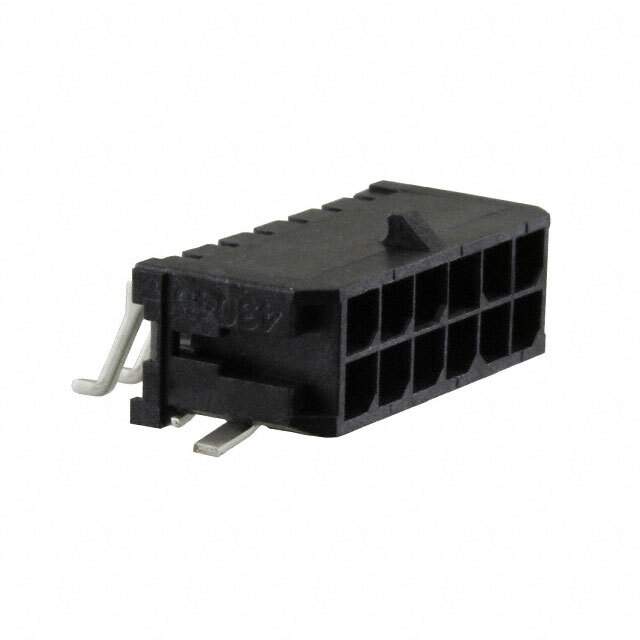

43045-1211 Real Image
Same model may have multiple batches, images only for reference.

43045-1211

Part No 43045-1211
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Connector Header, HDR 12 POS 3mm Solder RA SMD 12 Terminal 1 Port Box/Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 5 A
Diameter 3 mm
Fastening Type Ramp
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 3 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 12
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Right Angle
Packaging Tape & Reel
Pitch 3 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.9972 mm
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1019368-43045-1211
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43045-1211 CAD Model

Description

The 43045-1211 connector from Molex, LLC is a circular connector housing with male pins.

  • Type: Circular Connector Housing
  • Gender: Male Pins
  • Contacts: 12
  • Color: Black
  • Pitch: 3 mm
  • Row Spacing: 2.9972 mm
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating: 250 V
  • Current Rating: 5 A
  • Housing Material: Thermoplastic
  • Housing Color: Black
  • Termination: Soldered
  • Orientation: Right-Angle
  • Contact Resistance: 10 mΩ
  • Insulation Resistance: 1 GΩ
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
