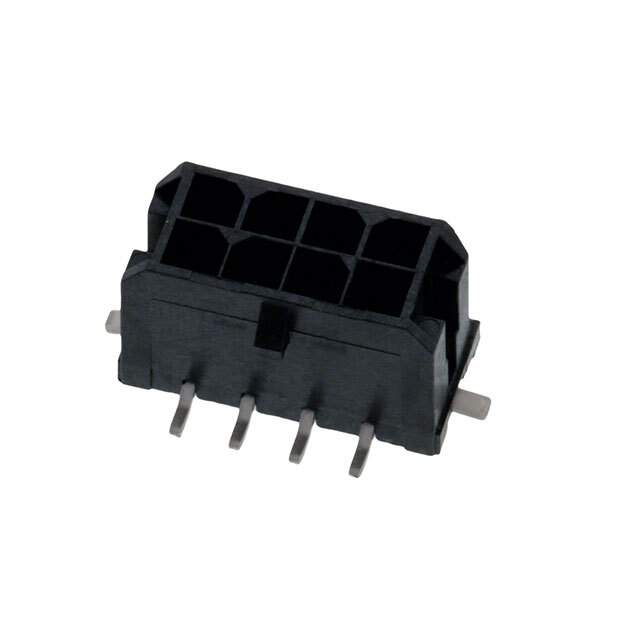

43045-0820 Real Image
Same model may have multiple batches, images only for reference.

43045-0820

Part No 43045-0820
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Vertical, with Solder Tab, 8 Circuits | CONN HEADER SMD 8POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128677-43045-0820
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43045-0820 CAD Model

Description

This electronic component is a header connector type from Molex with a Win Source Part Number of 1128677-43045-0820.

  • Manufacturer: Molex
  • Type: Header connector
  • Win Source Part Number: 1128677-43045-0820
  • Packaging: Cut tape (CT)
  • Positions: Eight
  • Mounting Style: SMD
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Locking ramp
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Material Flammability Rating: UL94 V-0
  • Applications: General purpose, medical, military, and telecommunications
  • Insulation Material: Liquid crystal polymer (LCP) and glass filled
  • Style: Board to cable/wire
  • Pitch for mating: 0.118" (3.00mm)
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 30.0μin (0.76μm)
  • Contact Finish for Post: Tin
  • Contact Finish Thickness for Post: 100.0μin (2.54μm)
  • Insulation Color: Black
  • Shrouding: Shrouded - 4 wall
  • Row Spacing for Mating: 0.118" (3.00mm)
  • Insulation Height: 0.390" (9.91mm)
  • Contact Shape: Square
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 8A
