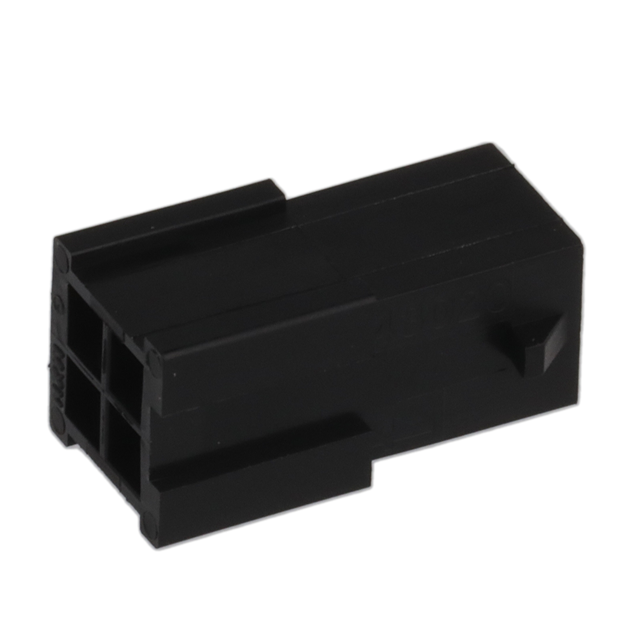

The Molex 43020-0409 is a Micro-Fit 3.0 receptacle housing designed for wire-to-wire and wire-to-board applications. This component is a critical part of the Micro-Fit 3.0 connector system, known for its compact design and high current carrying capabilities. It facilitates reliable and secure connections in various electronic devices and systems.

Applications

• Consumer electronics (e.g., appliances, gaming consoles)
• Automotive industry (e.g., control systems, lighting)
• Industrial equipment (e.g., robotics, automation systems)
• Telecommunications equipment (e.g., servers, routers)
• Medical devices (e.g., diagnostic equipment, monitoring systems)

Features

• Compact Design: Micro-Fit 3.0 connectors offer a smaller footprint compared to traditional power connectors, saving valuable board space.
• Positive Locking: Provides a secure connection, preventing accidental disconnections due to vibration or movement.
• Polarization: Ensures correct mating orientation, preventing damage to the connector or connected components.
• High Current Capacity: Designed to handle significant current loads, suitable for power applications.
• Durable Material: Constructed from high-quality materials to withstand harsh environments and ensure long-term reliability.

Benefits

• Reliable Connection: The positive locking feature and durable construction ensure a stable and dependable connection, reducing the risk of failures.
• Space Savings: The compact design allows for higher density packaging, enabling smaller and more efficient electronic devices.
• Easy Assembly: The housing is designed for easy wire termination and assembly, reducing manufacturing time and costs.
• Versatile Application: Suitable for a wide range of applications, from consumer electronics to industrial equipment.
• Improved Performance: The high current capacity and low contact resistance contribute to improved system performance and efficiency.

Additional Details

The 43020-0409 receptacle housing is typically used with Micro-Fit 3.0 terminals and headers to create complete connector assemblies. It supports a 3.0mm pitch and is available in various circuit sizes. The housing is made of UL 94V-0 rated material, ensuring flame retardancy and safety. It is designed for crimp termination, providing a gas-tight connection for optimal performance. Proper tooling is recommended for crimping the terminals to ensure a reliable and consistent connection. The operating temperature range typically spans from -40°C to +105°C, making it suitable for a wide range of environmental conditions.
