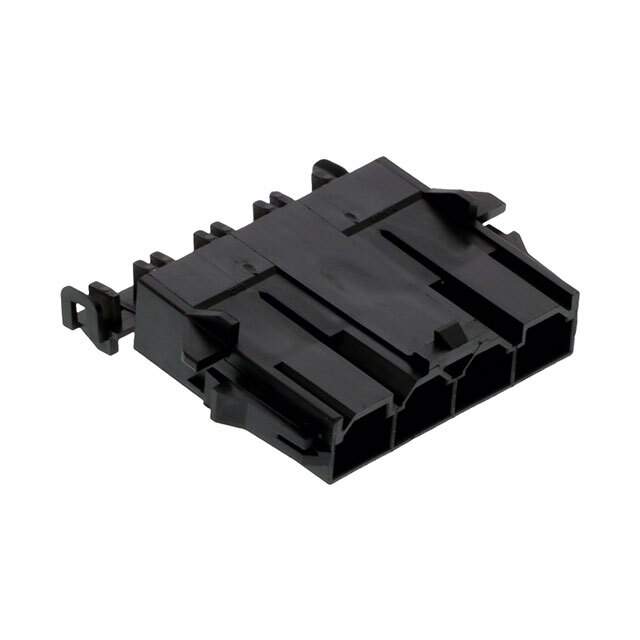

42818-0412 Real Image
Same model may have multiple batches, images only for reference.

42818-0412

Part No 42818-0412
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 10.00mm Pitch Mini-Fit Sr. Plug Housing, Single Row, Panel Mount, 4 Circuit, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Color Black
Connector Type Power, Rectangular
Contact Gender Male
Contact Plating Tin
Contact Resistance 1 mΩ
Country of Origin US
Current Rating 50 A
Depth 34.6 mm
Diameter 10 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Lead Free
Length 51.3 mm
Material Polyester
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Panel
Number of Circuits 4
Number of Contacts 4
Number of Pins 4
Number of Poles 4
Number of Positions 4
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 10 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Solder
Voltage Rating (AC) 250 V
Voltage Rating (DC) 600 V
Width 13.8 mm
Wire/Cable Gauge 9 AWG
Working Voltage 600 V
Win Source Part Number 1157614-42818-0412
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 42818-0412 CAD Model

Description

The Molex 1157614-42818-0412 is a rectangular power connector with 4 contacts.

  • Contacts: 4
  • Pitch: 10mm
  • Current Rating: 50A
  • Housing Material: Polyester
  • Contact Plating: Tin
  • Voltage Rating: 600V
  • Approvals: CSA, TUV, and UL
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Length: 51.3mm
  • Width: 13.8mm
  • Depth: 34.6mm
  • Mounting: Panel
  • Temperature Range: -40°C to 105°C
  • Insulation Resistance: 1 GΩ
  • Flammability Rating: UL94 V-0
  • Glow Wire Compliant: No
  • Popularity: Popular
  • Supply and Demand Status: Limited
