Part No 42816-0512
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)

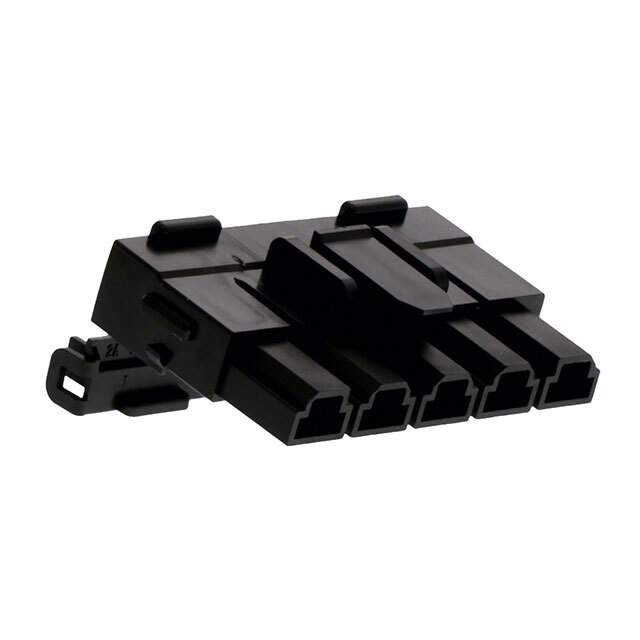

Description Conn Outlets PIN 7 POS 8.5mm 7 Terminal 1 Port Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0512
Color Black
Connector Type Power, Rectangular
Contact Gender Female
Contact Plating Tin
Contact Resistance 1 mΩ
Country of Origin US
Current Rating 50 A
Depth 34.4 mm
Diameter 10 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Yes
Length 53.5 mm
Material Polyester
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable, Panel
Number of Circuits 5
Number of Contacts 5
Number of Pins 5
Number of Poles 5
Number of Positions 5
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 10 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Shell Material Polyester
Termination Crimp
Voltage Rating (AC) 600 V
Voltage Rating (DC) 600 V
Width 14.8 mm
Wire/Cable Gauge 9 AWG
Working Voltage 600 V
Win Source Part Number 1031429-42816-0512
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 42816-0512 CAD Model

Description

This Molex Rectangular Power Connector has five positions and a pitch of 10 mm.

  • Positions: Five
  • Pitch: 10 mm
  • Color: Black
  • Termination: Crimp
  • Current Rating: 50 A
  • Voltage Rating: 600 V
  • Gender: Female Receptacle
  • Length: 53.5 mm
  • Housing Material: Polyester
  • Rows: One
  • Circuits: Five
  • RoHS Compliant: Yes
  • REACH SVHC: Does Not Contain
  • Manufacturer: Molex, LLC
  • Win Source Part Number: 1031429-42816-0512
