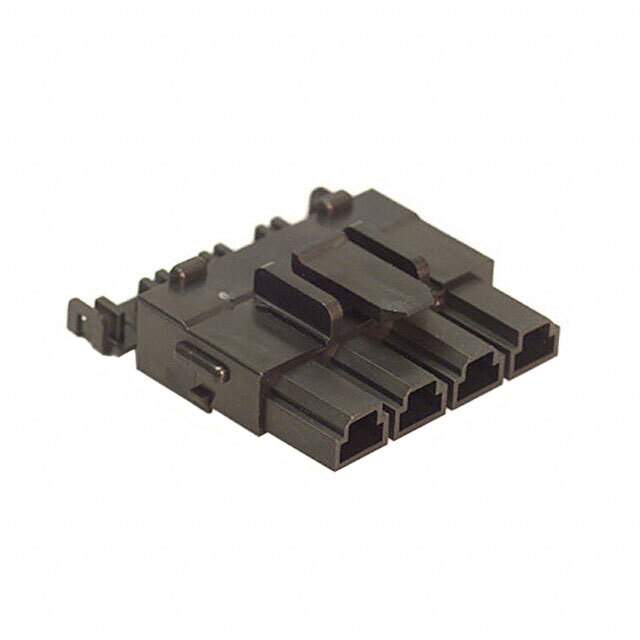

The Molex 42816-0412 is a Mini-Fit Jr. connector housing designed to provide a reliable and secure connection for power and signal applications. As part of the widely used Mini-Fit Jr. series from Molex, this housing ensures proper alignment and protection of electrical contacts, facilitating efficient power and signal transmission in various electronic devices and systems. Its robust design and secure locking mechanism make it suitable for demanding environments.

Applications

• Power supplies
• Industrial automation equipment
• Consumer electronics
• Telecommunications equipment
• Medical devices
• Automotive electronics

Features

• Robust construction: Typically made from durable materials to withstand harsh environmental conditions.
• Polarization features: Ensures correct mating orientation to prevent misconnections.
• Positive locking mechanism: Provides a secure connection that resists accidental disconnections due to vibration or movement.
• Multiple contact positions: Accommodates a range of circuit requirements.
• High current carrying capacity: Suitable for power applications.
• Easy assembly: Designed for quick and straightforward installation, reducing assembly time and costs.

Benefits

• Enhanced reliability: Minimizes the risk of connection failures, ensuring consistent performance.
• Improved safety: Provides insulation and protection against electrical hazards.
• Reduced downtime: Secure connections prevent interruptions and minimize maintenance requirements.
• Simplified assembly: Streamlines the manufacturing process, saving time and labor costs.
• Versatile application: Suitable for a wide range of industries and applications.
• Cost-effective solution: Offers a balance of performance and affordability.

Additional Details

The Mini-Fit Jr. connector system is known for its 4.2mm pitch and ability to handle higher current levels compared to smaller connector systems. The 42816-0412 housing is typically used with compatible Mini-Fit Jr. crimp terminals and mates with corresponding headers on the PCB or other housings. For detailed specifications, including voltage and current ratings, operating temperature range, and material composition, refer to the Molex datasheet. Proper crimping tools and techniques are essential for ensuring optimal contact performance. The "04" in the part number indicates a 4-circuit housing, while "12" is potentially related to the housing material or design revision. Consult the Molex website or authorized distributors for up-to-date information and application notes.
