Same model may have multiple batches, images only for reference.

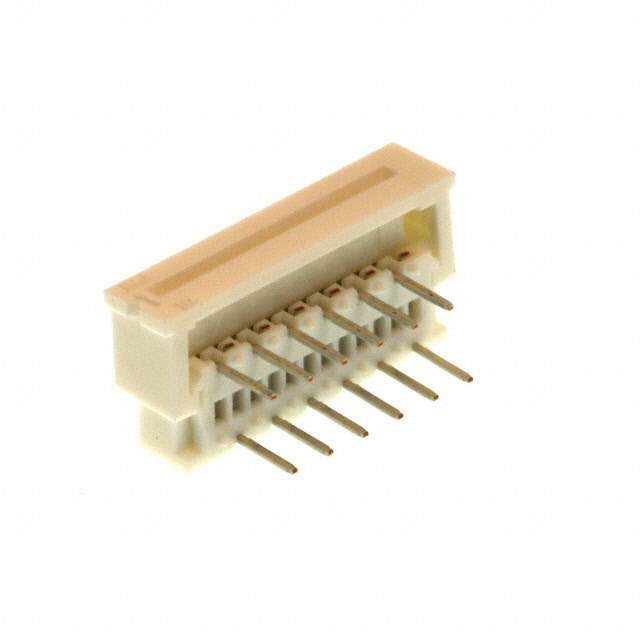

0039532124 Real Image
Same model may have multiple batches, images only for reference.

0039532124

Part No 0039532124
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 12POS 1.25MM RA / 12 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex
Series 5597
Package Tray
Flat Flex Type FFC, FPC
Mounting Type Through Hole, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 12
Pitch 0.049" (1.25mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.213" (5.40mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Polybutylene Terephthalate (PBT) , Polyester
Actuator Material Polybutylene Terephthalate (PBT) , Polyester
Features Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -20°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 39.4µin (1.00µm)
Mating Cycles 30
Base Product Number 003953
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1339533-0039532124
Ultra Librarian 3D Model Ultra Librarian 0039532124 CAD Model

Description

The Molex FFC, FPC Connector Assembly is a high-quality electronic component used in various applications.

  • Series: 5597
  • Number of Positions: 12
  • Pitch: 0.049" (1.25mm)
  • Feature: Zero Insertion Force (ZIF)
  • Termination Type: Solder
  • Contact Finish: Tin Bismuth
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Package: Tray
  • Standard Package: 900
  • MSL Level: 1 (Unlimited)
  • Current Rating: 1A
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4051
  • RoHS Compliant: Yes
